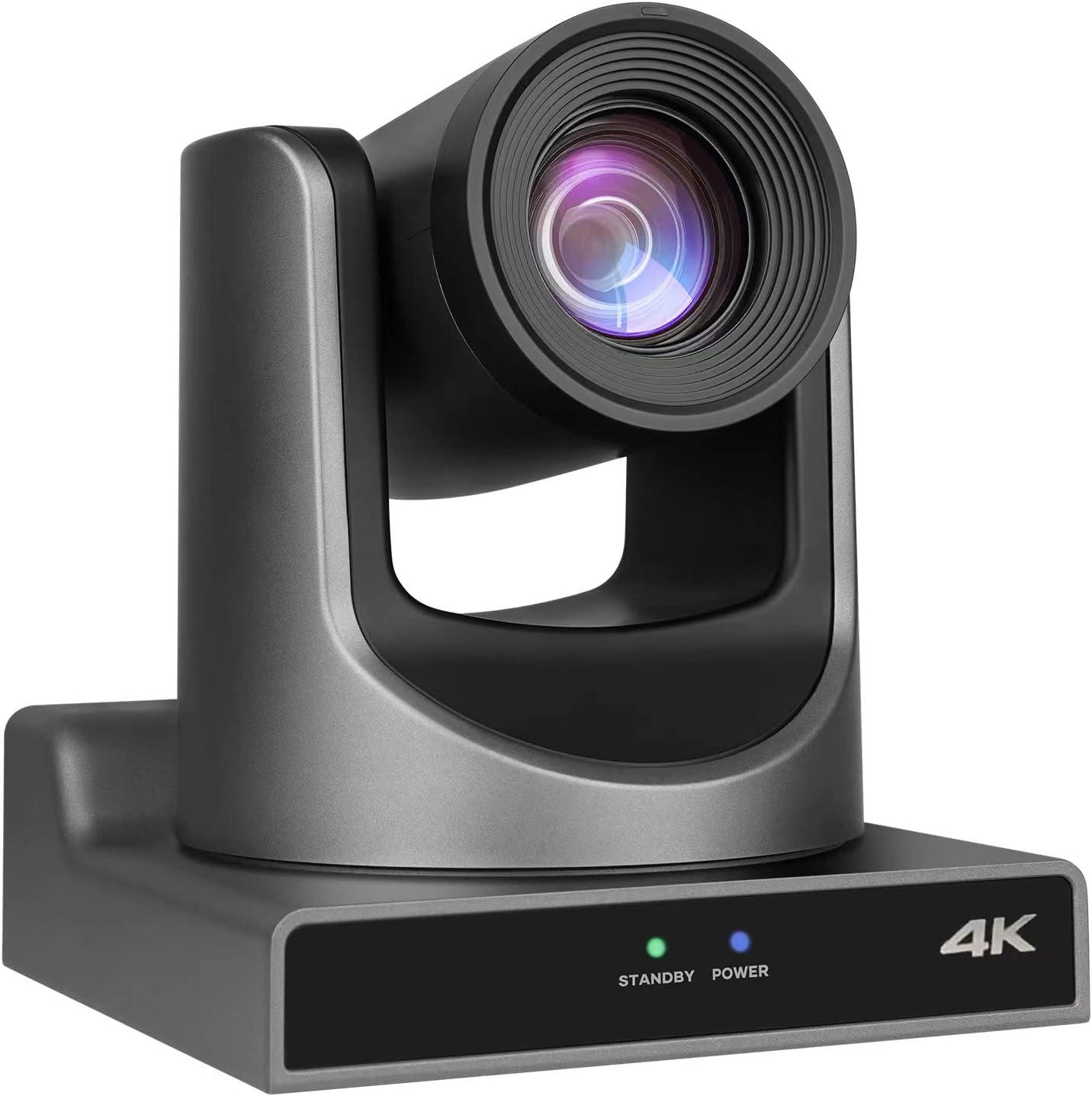

SMTAV NDI Supported 4K PTZ Camera with 3G-SDI,HDMI,USB and IP Streaming Outputs simultaneously,12X Optical Zoom,UHD Video Conference Camera, Support POE

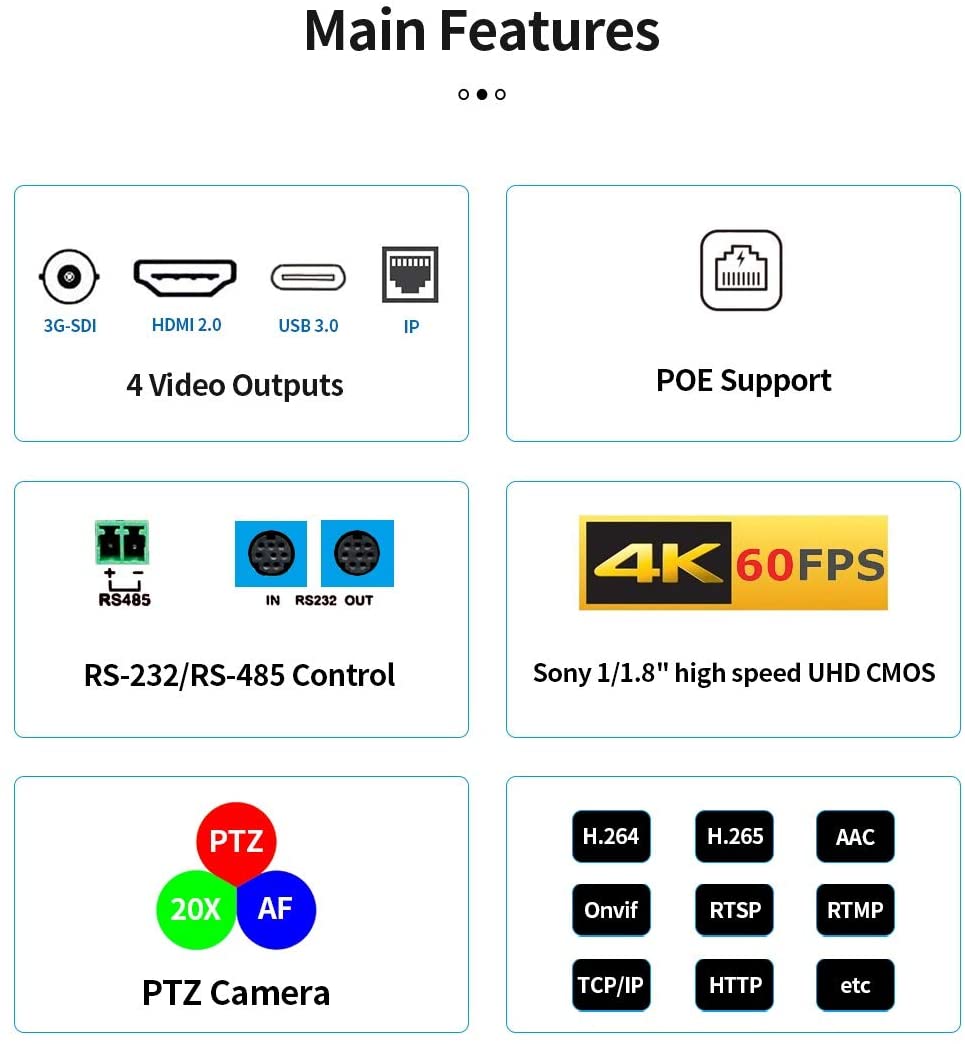

Main Features

●4K Ultra HD
It adopts a new generation of SONY 1/2.5-inch high-quality UHD CMOS sensor with a maximum of 8.51 million pixels, which can achieve 4K (3840x2160) ultra-high-resolution high-quality images. And backward compatible with multiple resolutions such as 1080P and 720P.
●71°wide-angle lens, 12x optical zoom
Exclusively customized high-quality real 8 million ultra-high-resolution 4K ultra-wide-angle lens, 12x optical zoom, and a maximum field of view of more than 70°.
●Low illumination
The new CMOS image sensor with ultra-high performance-to-noise ratio can effectively reduce image noise in low illumination conditions, while applying 2D and 3D noise reduction algorithms to greatly reduce image noise, even in ultra-low illumination conditions, still keeping the picture clean and clear , The image signal-to-noise ratio is up to 55dB or more.
It supports HDMI 2.0 specification and can directly output 4K uncompressed digital video.
●Rich output interface
HDMI, 3G-SDI, USB3.0, LAN four channels can simultaneously output 4 channels of high-definition digital signals.
●Built-in gravity sensor
Support image automatic flip function, convenient for engineering installation and use
●Low power consumption sleep function
Support low-power sleep/wake-up, the power consumption in sleep state is less than 400mW.
●Smart Exposure
Effectively solve the impact of projectors, televisions and other equipment on shooting people
●Remote control
A variety of control methods, RS232, RS485, network and USB can be used to control the camera.

Video System HDMI:4KP60fps, 4KP50fps,4KP30fps, 4KP25fps,4KP59.94fps,4KP29.97fps, 1080P60fps, 1080P50fps, 1080I60fps,1080I50fps, 1080P30fps,1080P59.94fps, 1080I59.94fps, 1080P29.97fps, 720P60fps,720P59.94fps
3G-SDI:1080P60fps, 1080P50fps, 1080I60fps,1080I50fps, 1080P30fps,1080P29.97fps,1080P59.94fps, 1080I59.94fps, 1080P25fps, 720P60fps,720P59.94fps
Sensor 1/2.5'', CMOS, Max Effective Pixel: 851M
Scanning Mode Progressive
Lens 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Digital Zoom 16x
Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
Backlight Compensation Support
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View  71° ~ 8.2°
Vertical Angle of View 42.7° ~ 4.5°
Horizontal Rotation Range  ±170°
Vertical Rotation Range  -30° ~ +90°
Pan Speed Range  1.7° ~ 100°/s
Tilt Speed Range  1.7° ~ 69.9°/s
H & V Flip Support
Image Freeze Support
PoE Support (802.3af)
Face Detection support(opional)
Number of Preset  255
Preset Accuracy  0.1°
USB Featured
Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression YUY2 / H.264 / MJPEG /H.265
Video Format YUY2 :Max to1080@60fps
H.264 AVC: Max to 2160@60fps
H.264 SVC: Max to 2160@60fps
MJPEG: Max to 2160@60fps
H.265:Max to 2160@60fps
Audio on USB Support
USB Video Communication Protocol UVC 1.1~1.5
UVC PTZ Support
Network Features
Video Compression H.265 / H.264 / MJEPG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 3840x2160, 1920x1080, 1280x720, 1024x576, etc.
Sub Stream Resolution 1920x1080, 1280x720, 720x576, 720x480, 320x240, etc.
Video Bit Rate 32kbps~51200kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame Rate 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression AAC, G711
Audio Bit Rate 48Kbps, 64Kbps, 96Kbps, 128Kbps
Support protocols TCP/IP, HTTP, RTSP, RTMP/RTMPS,SRT, Onvif, DHCP,  Multicast, GB/T28181,etc.

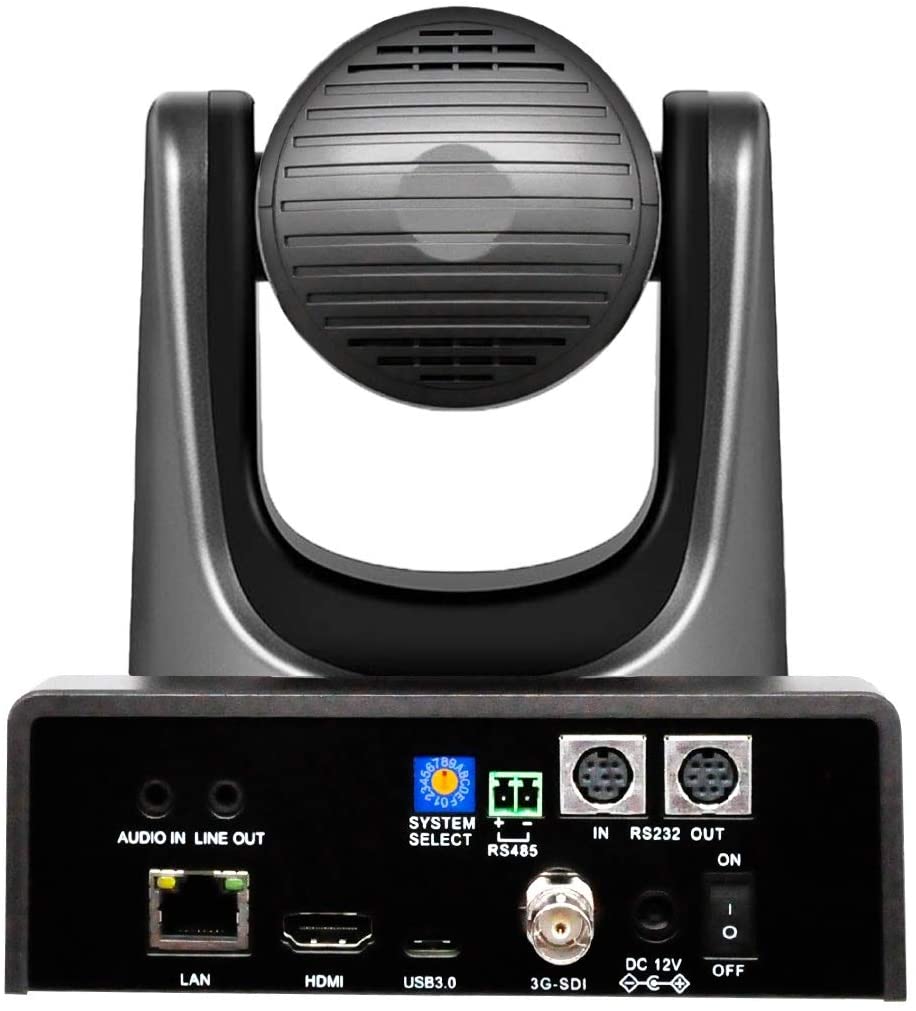

Input/Output Interface
HD Output 1xHDMI: Version 2.0
1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
Network Interface 1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply
Audio Interface 1-ch: 3.5mm Audio Interface, Line In/Mic In
USB  1xUSB3.0: Type-C,Up to 4K@60fps compressed video and 1080P original video can be output
Communication Interface 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol:  VISCA network use only
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power Jack JEITA type (DC IN 12V)
Generic Specification
Input Voltage DC 12V/PoE (802.3af)
Current Consumption 1.0A (Max)
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption 12W (Max)
Size 169mm x 142mm x 164mm
Net Weight 1.35Kg (3.0lb)
