AI Auto Tracking 4K PTZ Camera with 3G-SDI,HDMI,USB and IP Streaming Outputs simultaneously,60°lens，30X optical zoom, 4KP60 UHD, Support NDI HX2 Support PoE
With the help of the AI computing power of the chip, the monocular human shape tracking based on advanced AI algorithm, combined with convenient tracking settings, can be used in a variety of scenes such as education, conference and live broadcast to realize the intelligent guide function.
Note:Use the remote control to press F3 to start the tracking, F4 stop the tracking
NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has a good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.
The new generation of Sony 1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
●30x optical zoom
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution. 30 times optical zoom, and the maximum field angle is 60 °
Support hdmi2 0 interface, which can directly output 4kp60 uncompressed digital video.
The new CMOS image sensor with ultra-high signal noise ratio can effectively reduce the image noise under low illumination. The application of 3D noise reduction algorithm can greatly reduce the image noise. Even under ultra-low illumination, the picture remains clean and clear, and the image signal-to-noise ratio is more than 55dB.

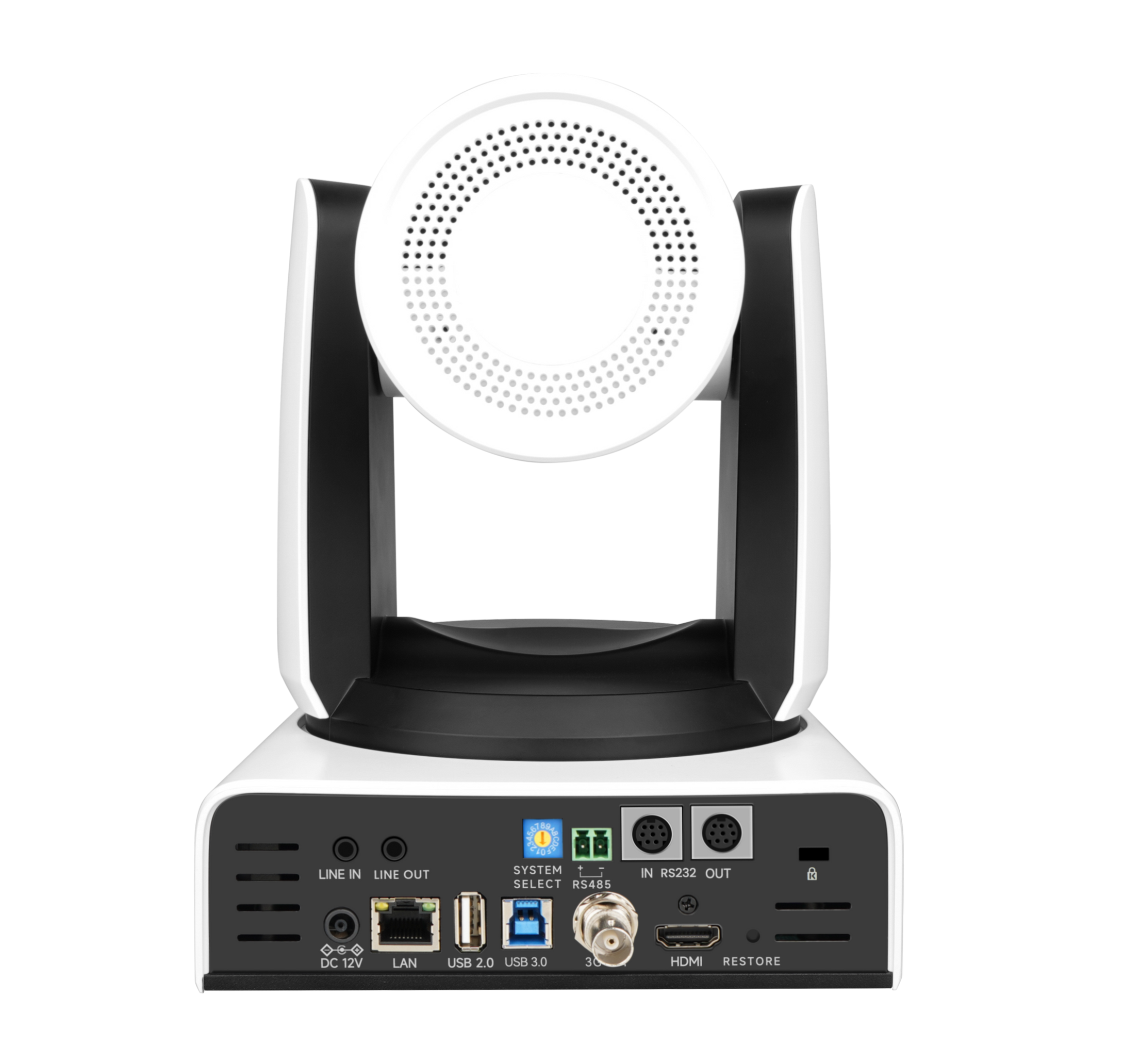

●Rich and perfect interfaces
Support hdmi2 0 HD output, equipped with 3g-sdi interface, with an effective transmission distance of up to 150m (1080p30). HDMI or 3g-sdi, USB and LAN can output 3 HD digital signals at the same time.
Multiple control modes, RS232, RS485, network and USB can be used to control the camera.
It supports the automatic image flipping function, which is convenient for engineering installation and use.
|Video System||4K@60fps,4K@59.94fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@25FPS.1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps.720P@50fps|
|Sensor||1 / 1.8-inch high-quality UHD CMOS sensor with a maximum of 8.42 million pixels|
|Scanning Mode||Progressive scanning|
|Lens||30x, f = 7.1mm~210mm , F1.61～ F5.19|
|Minimal Illumination||0.5Lux @ (F1.8, AGC ON)|
|Shutter||1/30s ~ 1/10000s|
|White Balance||Automatic, indoor, outdoor, one touch, manual|
|Digital Noise Reduction||3D digital noise reduction|
|Horizontal Angle of View||59.2° ~ 2.5°|
|Vertical Angle of View||34.6° ~ 1.4°|
|Horizontal Rotation Range||±170°|
|Vertical Rotation Range||-30° ~ +90°|
|Pan Speed Range||1.7° ~ 100°/s|
|Tilt Speed Range||1.7° ~ 69.9°/s|
|H & V Flip||Supported|
|Number of Preset||255|
|Operate System||Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android|
|Color System / Compression||H.264 / MJPEG /H.265|
|Video Format||YUY2：MAX 1080@30fps
H.264 AVC: MAX2160P@30fps
H.264 SVC: MAX2160P@30fps
H.265 SVC: MAX2160P@30fps
|Audio on USB||Supported|
|USB Video Communication Protocol||UVC 1.1~1.5|
|Video Stream||First streaming, second streaming|
|Main Stream Resolution||3840x2160, 1920x1080, 1280x720, 1024x576|
|Sub Stream Resolution||720x576, 720x480, 320x240,etc (*)|
|Video Bit Rate||32kbps~102400kbps|
|Bit Rate Type||Variable bit rate，Fixed bit rate|
|Frame Rate||50Hz: 1fps~50fps, 60Hz:1fps~60fps|
|Audio Bit Rate||96Kbps,128Kbps|
|Support protocols||NDI®|HX2, SRT, TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast and so on|
|HD Output||1x, HDMI: 2.0
Video format：4K@25/30/50/60/59.94/29.97fps; 1080P@25/30/50/60/59.94/29.97fps;1080I@50/60/59.94/29.97fps； 720P@50/60/59.94fps
Notes：4KP60/50/59.94 HDMI output only support YUV420
|1x, 3G-SDI: BNC type, 800mVp-p, 75Ω, follow SMPTE 424M standard
video format：1080P@25/30/50/60/59.94/29.97fps; 1080I@50/60/59.94fps; 720P@50/60fps
|Network Interface||1x, RJ45: 10M/100M/1000M Adaptive Ethernet|
|Audio Interface||1x, Line In, 3.5mm audio Interface；|
|USB||1x，USB3.0, Type-B (optional)
|Communication Interface||1x, RS232 In: 8pin Min DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P|
|1x, RS232 Out: 8pin Min DIN, Max Distance: 30m, VISCAnetwork use only|
|1x, RS485: 3 core phoenix mouth , Max Distance: 1200m, VISCA/Pelco-D/Pelco-P|
|Power Jack||JEITA Type（DC IN 12V）|
|Installation Direction||Mounting, Ceiling Mounting|
|TALLY Light||1PCS (Red and Green)|
|Status Light||1PCS (Green)|
|IR Remote control input||Supported|
|Input Voltage||DC 12V / POE+|
|Operating Temperature||0°C ~ 40°C|
|Storage Temperature||-40°C ~ 60°C|
|Power Consumption||MAX 18W|
|Size||170mm(W) x 228mm(H) x 181mm(D)|
The image quality on this PTZ is great, and the focus capabilities aren't hindered when zoomed out or zoomed in all the way. The big let down of this camera is the AI tracking. It does a great job keeping your subject in frame when enabled, but you lose all other controls when tracking is enabled. You cannot zoom in further while tracking is enabled which greatly limits the usefulness of the option. Thankfully, the presets are great for creating different scenes, but again, you can't use a preset or zoom or do anything while tracking is enabled.
