New 12x Optics Zoom SDI+HDMI+IP Streaming Camera SDI Camera Outputs High-speed HDMI/3G-SDI/RJ-45 PTZ Video Conference Camera

Main Features

●3.1 million pixels(12X), 1/2.8 inch Progressive CMOS sensor

●Full HD multi-format output (HDMI/3G-SDI/RJ-45)

●12x zoom

●Wide-range fast pan/tilt, accurate 355-degree horizontal positioning

●Multifunctional infrared remote control, all functions of the camera can be completed by the remote control

●Support RS-232C, RS-422/485 and USB control

●Compatible with SONY VISCA protocol and PELCO P/D protocol

●Support image flip (suitable for desktop and ceiling mount)

●Support self-upgrade program through RS-232C serial port



Details

imaging sensor

SONY 1 / 2.8-inch Progressive CMOS

Effective pixel

3.1 Million pixels(12X)

signal systemHD

1080p60/50,1080p30/25,1080i60/50,720p60/50

Signal system

PAL/NTSC

camera lens

20 x Optical zoom, f=4.7mm (wide angle end) ~94.0mm (distal),16XDigital zoom

12 x Optical zoom, f=3.9mm (wide angle end) ~46.8mm (distal),16XDigital zoom

horizontal view angle

72.5 (Wide Angle end) ~7.4 (far end)---(12x)

Focus mode

Automatic / manual

Minimum lighting

0.1Lux

shutter speed

1/1~1/10000S

gain

Automatic / manual

white balance

Automatic / Manual / Indoor / Outdoor

Image effect

Color / Black / Electronic flip

S/Nratio

More than 50dB

Horizontal shake

355°(Max. speed of 80 / s)

Bend up to shake

-30 ° to 90 ° (maximum speed of 60 / s)

Preset

Remote control of 9, the keyboard can be set up to 200

video outputHD

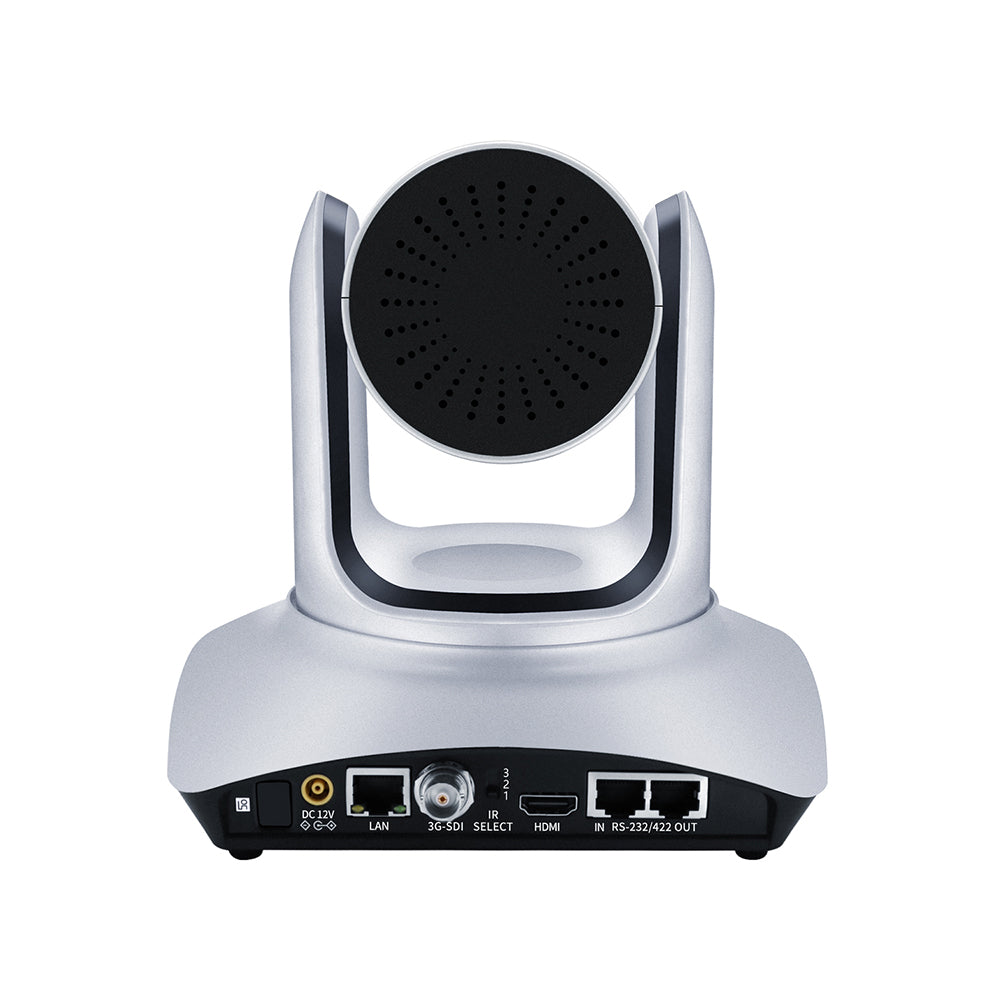

HDMI、3G-SDI、RJ-45

Power

12V   DC(10.8~13.0V DC)

service temperature

0℃~40℃

Storage temperature

-20℃~60℃

size

(Length) 170 (width) 151 (height) 190mm

power dissipation

Max. 12W (at DC 12V)

weight

1310g

Product color

black

control protocol

SONY   VISCA、PELCO P/D

control method

RS-232C、RS-422/485、USB control

accessory

DC 12V power adapter, IR remote control, operation manual, RS-232 Serial port control wire, HDMI wire, lifting bracket
