●Full Function USB Interface
Full function USB interface, compatible with USB3.0 and USB2.0, support audio, compressed video output and UVC v1.1~1.5 protocol.
●1080P Full HD
Equip with Panasonic's 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.
●Ultra high frame rate
The output frame rate can reach 60fps under 1080P.

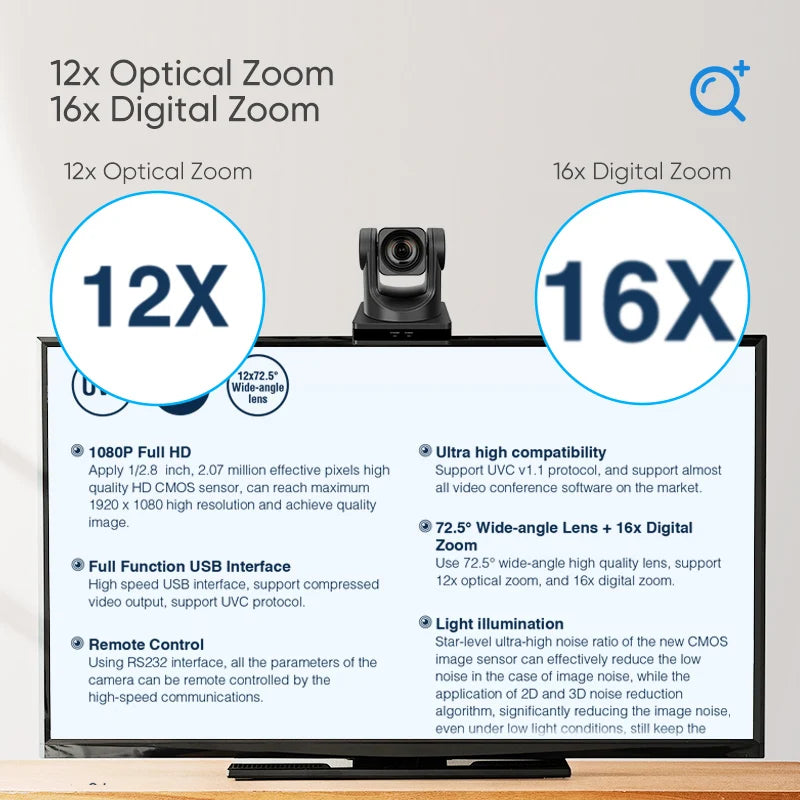

●72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.
●Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even in ultra-low illumination conditions, the image remains clean and clear , The image signal-to-noise ratio is up to 55dB.
●PoE support
Wired networks support PoE power supply. Control, power supply, video, and audio can be completed by using only one cable.
●Remote Control
Multiple control modes, using RS232, RS485, network and USB to control the camera.
●H.264 Slice/ H.264 SVC encoding support
H.264 output stream supports Slice and SVC encoding modes, which is suitable for high-end USB conference video applications.
●Dual stream (optional)
Support two-channel code stream(YUY2, MJPEG, H.264 any two channels) output simultaneously to reduce the pressure of host encoding and decoding.
●Perfect interface
Support HMDI (optional), USB3.0, network interface can output 1080P video at the same time.
●Three kinds of power supply modes
Support USB 5V power supply, 12V power adapter power supply and PoE power supply.
Name |
USB3.0 HD Video Conference Camera |
|
Camera | ||
Video System |
1080P60，1080P50，1080P30，1080P25，720P60，720P50 |
|
Sensor |
1/2.8'', CMOS, Effective Pixel: 2.07M |
|
Scanning Mode |
Progressive |
|
Lens |
12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
|
Digital Zoom |
16x |
|
Minimal Illumination |
0.5Lux @ (F1.8, AGC ON) |
|
Shutter |
1/30s ~ 1/10000s |
|
White Balance |
Auto, Indoor, Outdoor,One Push, Manual,Specified color temperature(2500K~8000K) |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital Noise Reduction |
|
Video S/N |
≥55dB |
|
Horizontal Angle of View |
72.5° ~ 6.9° |
|
Vertical Angle of View |
44.8° ~ 3.9° |
|
Horizontal Rotation Range |
±170° |
|
Vertical Rotation Range |
-30° ~ +90° |
|
Pan Speed Range |
2.7° ~ 35.7°/s |
|
Tilt Speed Range |
2.7° ~ 31.5°/s |
|
H & V Flip |
Support |
|
Image Freeze |
Support |
|
Number of Preset |
255 |
|
Preset Accuracy |
0.1° |
|
USB Featured | ||
Operate System |
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
|
Color System / Compression |
YUY2 / H.264 / MJPEG |
|
Video Format |
YUY2 (Isochronous mode): Max 1080P@60fps |
|
Audio on USB |
Support |
|
USB Video Communication Protocol |
UVC 1.1~1.5 |
|
UVC PTZ control |
Support |
|
IPC Features | ||
Video Compression |
H.264/MJEPG |
|
Video Stream |
Main Stream, Sub Stream |
|
Main Stream Resolution |
1920x1080,1280x720,1024x576,960x540,640x480,640x360 |
|
Sub Stream Resolution |
1280x720,1024x576,720x480,720x408,640x360,320x240，320x180 |
|
Video Bit Rate |
32Kbps ~ 102400Kbps |
|
Bit Rate Type |
Variable Rate, Fixed Rate |
|
Frame Rate |
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
|
Audio Compression |
AAC |
|
Audio Bit Rate |
96Kbps, 128Kbps, 256Kbps |
|
Support protocols |
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP,Multicast, etc. |
|
Input/Output Interface | ||
USB Interface |
1xUSB3.0: Type C |
|
HD output |
1xHDMI1.4b |
|
Network Interface |
1xRJ45: 10M/100M Ethernet Interface |
|
Audio Interface |
1-ch: 3.5mm Audio Interface, Line In |
|
Communication Interface |
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
|
Power Jack |
JEITA type（DC IN 12V）/USB B type（DC IN 5V）/PoE |
|
Generic Specification | ||
Input Voltage |
DC 12V/DC 5V/PoE(802.3af) |
|
Input Current |
12V 1.0A(max)/5V 1.5A(max) |
|
Operating Temperature |
-10°C ~ 40°C |
|
Storage Temperature |
-40°C ~ 60°C |
|
Power Consumption |
12W（max） |
|
MTBF |
>30000hrs |
|
Size |
144mm x 144mm x 167.9mm |
|
