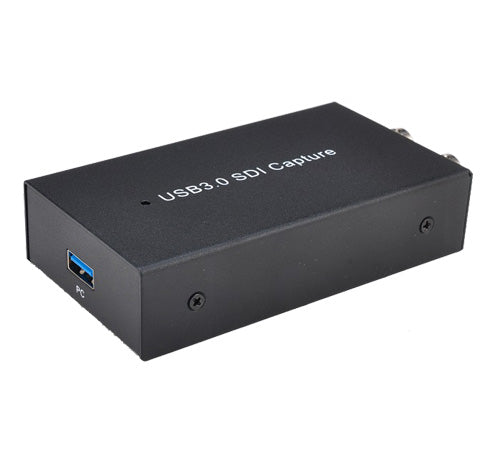

Capture Card, USB3.0 UVC SDI Video Capture

 EZCAP262

About this item

  • With USB 3.0 fastest data transfer speed, it's simple and powerful to get SDI video and audio into your computer, up to 1080@60fps.
  • Support UVC standard, no driver installation required, and work with most software on Windows or Mac. Allow live video streaming, webcasting or video conferencing to Skype, Facebook live, YouTube live, Livestream,Ustream, Dacast, Wowza Cloud …
  • With SDI pass-through, can connect with big displayer to play game once you streaming.
  • 【Plug&Play, Compact&Portable】: As a portable plug and play capture card, this is easy to use can be used without any driver and external power supply, It supports low latency, full-screen recording, HD 1080P resolution, no flicker, and delicate pictures. It can be plug-and-play for Windows, Ma OS X and Linux, so you can use the built-in functions of the current software to get a seamless experience.

Product Description

Interface USB 3.0

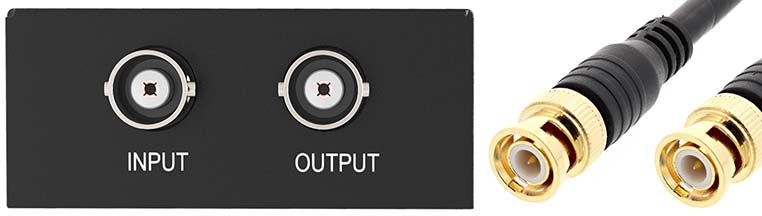

Video Input Digital: SDI
Audio Input Digital: SDI
Video Output Digital: SDI,USB
Audio Output Digital: SDI,USB
Resolution Input / Output:                                                                                                                 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:    Max 1080P 60fps
Operating System Windows 7,8,10, OS X 10.9 or later, Linux. PC: Intel Core i5-3400 + NVIDIA GT630, NB: Intel Core i7-3537U 2.0 GHz + NVIDIA GT735, Mac: i5 quad-core or above, VGA card supporting DirectX 10, Sound card, 4GB RAM, Powered USB 3.0 port: Intel chipset with native USB 3.0 host controller (Renesas, Fresco …)
Software Compatibility OBS Studio (windows,OS X); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X); vMix(Windows); Potplayer (Windows) and etc.
Development interface compatibility: DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Package Contents ezcap262 USB3.0 UVC SDI Video Capture, USB 3.0 cable, Manual
Dimensions 107*55*21 (mm)
Weight 80g

Connect and Operate

  1. Connect the signal sources such as Blu-Ray Player, Play Station, audio/video receiver, satellite receivers with HDMI output interfaces with a SDI cable to the device SDI input.
  2. Insert the USB 30 cable head to USB 30 interface, the other side of the cable into your computer 's USB 3.0 interface.
  3. SDI to USB 30 Video Capture Dongle is based on UVC (USBvideoclass) STANDARD , without having to install drivers and settings. After installation in operating system , the relevant video and audio devices will be addedon. In Windows ,for example, will have new image device:USB3.0 HD Vedio Capture

Packing List:

  • 1 xUSB3.0 SDI Video Capture Card
  • 1xUSB 3.0 Cable
  • 1 x User Manual
