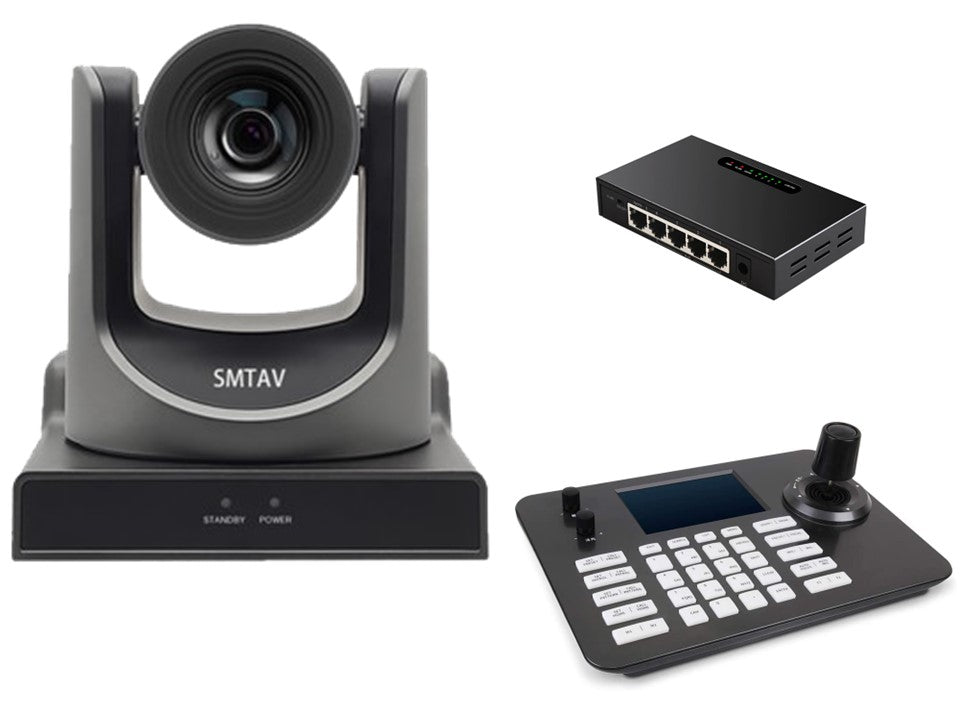

One 20X Optical Zoom NDI Camera and One Joystick controller and One PoE Switch Live Solution
-
20x Optical + 16x Digital Zoom NDI Camera BA20N,
-
NDI 4.5.2, NDI HX2
-
Uncompressed HD video source;
-
Ultra-low latency: about 400ms latency
-
It's more cost-effective to buy this Bundle: You can save about $49
NDI Camera, BA20N
NDI activated Camera, 20x Optical + 16x Digital Zoom,high-Speed PTZ,3G-SDI+HDMI+IP Streaming Outputs, Support NDI, Support POE, Video Conference Camera
Main Features
●20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
●H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
●1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
●Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
●AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
●Local Storage
Support U disk local storage, local recording directly without NVR.
●Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.
●Multiple Interfaces
Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.
●Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.
PTZ Controller,4D Joystick Onvif PTZ Controller with 5 inch LCD support POE
- With USB 3.0 fastest data transfer speed, it's simple and powerful to get SDI video and audio into your computer, up to 1080@60fps.
- Support UVC standard, no driver installation required, and work with most software on Windows or Mac. Allow live video streaming, webcasting or video conferencing to Skype, Facebook live, YouTube live, Livestream,Ustream, Dacast, Wowza Cloud …
- With SDI pass-through, can connect with big displayer to play game once you streaming.
- 【Plug&Play, Compact&Portable】: As a portable plug and play capture card, this is easy to use can be used without any driver and external power supply, It supports low latency, full-screen recording, HD 1080P resolution, no flicker, and delicate pictures. It can be plug-and-play for Windows, Ma OS X and Linux, so you can use the built-in functions of the current software to get a seamless experience.
PoE Switch,5-Port 10/100/1000Mbps Unmanaged PoE Switch (4-Port PoE)
TXE038 is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the 5-port 10/100/1000Mbps Desktop PoE Switch is a great selection for expanding your home or office network.
Features
- Comply with IEEE802.3、IEEE802.3i、IEEE 802.3u、IEEE802.3ab、IEEE802.3x、IEEE802.3az、IEEE802.1q Ethernet standards;
- Supports IEEE802.3af、IEEE802.3at PoE standards;
- Supports PoE power up to 30W for each PoE port, all power up to 60W;
- VLAN isolation to meet security monitoring requirements;
- Support 5 x10/100/1000Mbps Auto-negotiation RJ45 ports with 4 port PoE function (port1-port4);
- Independent uplink port can ensure that the port can easily cope with sudden high traffic, and ensure that the upstream channel is unobstructed;
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode;
- 2K entry MAC address table of the switch with auto-learning and auto-aging;
- LED indicators for monitoring Port Link / Activity;
- External power supply, exquisite design, suitable for desktop 、Wall hanging install and use.
