Features
Full Function USB Interface
Full function USB interface, compatible with USB3.0 and USB2.0, support audio and encoding output, support UVC 1.1 protocol.
1080P Full HD
The new high-quality HD CMOS sensor with 2.07 million effective pixels for high-quality image resolution up to 1920x1080.
72.5° Wide-angle-lens +16x Digital Zoom
The exclusively customized 72.5° high-quality ultra-wide-angle-lens, support 12x optical zoom and 16x digital zoom.
Low Illumination
The new CMOS image sensor with ultra-high SNR can effectively reduce the image noise under low illumination. The application of 2D and 3D noise reduction algorithm greatly reduces the image noise even under the condition of ultra-low illumination, it keeps the picture clean and clear, and the SNR of image is as high as 55dB.
PoE
The wired network supports PoE power supply, the control, power supply, video and audio can be completed with a network cable.
Remote Control
The camera can be controlled remotely through the RS232, RS485 and USB.
H.264 Slice/H.264 SVC
The H.264 stream supports Slice and SVC encoding modes, and suitable for high-end USB conference video application.
Dual Stream
Support dual stream output (YUY2, MJPEG, H.264 each of both) to reduce the host codec pressure.
Multiple & Complete Interfaces
Support 1080P video output through HDMI, USB 3.0 and network simultaneously.
Three Power Supply Modes
Simultaneously support USB 5V, DC 12V power adapter and PoE power supply.
High Frame Rate
1080P output frame rate up to 60fps.
Specifications
| Camera | |
| Video System | 1080P60, 1080P50，1080P30, 1080P25，720P60, 720P50 |
| Sensor | 1/2.8-inch, CMOS,Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 12x, f=3.5mm~42.3mm, F1.8~F2.8 |
| Digital Zoom | 16x |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s~1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| SNR | ≥55dB |
| Horizontal FOV | 72.5°~6.9° |
| Vertical FOV | 44.8°~3.9° |
| Pan Angle | ±170° |
| Tilt Angle | -30°~+90° |
| Pan Speed | 2.7°~35.7°/s |
| Tilt Speed | 2.7°~31.5°/s |
| Image Flip | Support |
| Image Freeze | Support |
| Preset Position | 255 |
| Preset Accuracy | 0.1° |
| USB Features | |
| Operate System | Windows 7/8/10,Mac OS X, Linux, Android |
| Color System / Compression | MJPG/YUY2/H.264 |
| Video Format | YUY2:1080P60 (max.) H.264 AVC:1080P60 (max.) H.264 SVC:1080P60 (max.) MJPEG: 1080P60 (max.) |
| USB Audio | Support |
| USB Protocol | UVC 1.1 |
| UVC PTZ Control | Support |
| Network Features | |
| Video Compression | H.264/MJPEG |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second Stream Resolution | 1280x720, 1024x576, 720x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x272, 320x240, 320x180 |
| Video Bit Rate for First Stream | 32Kbps~20480Kbps |
| Video Bit Rate for Second Stream | 32Kbps~6144Kbps |
| Bit Rate Control | CBR, VBR |
| Frame Rate | 50Hz: 1fps~50fps, 60Hz: 1fps~60fps |
| Audio Type | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Protocols | TCP/IP, HTTP, RTSP,RTMP(S), ONVIF, DHCP,Multicast, etc. |

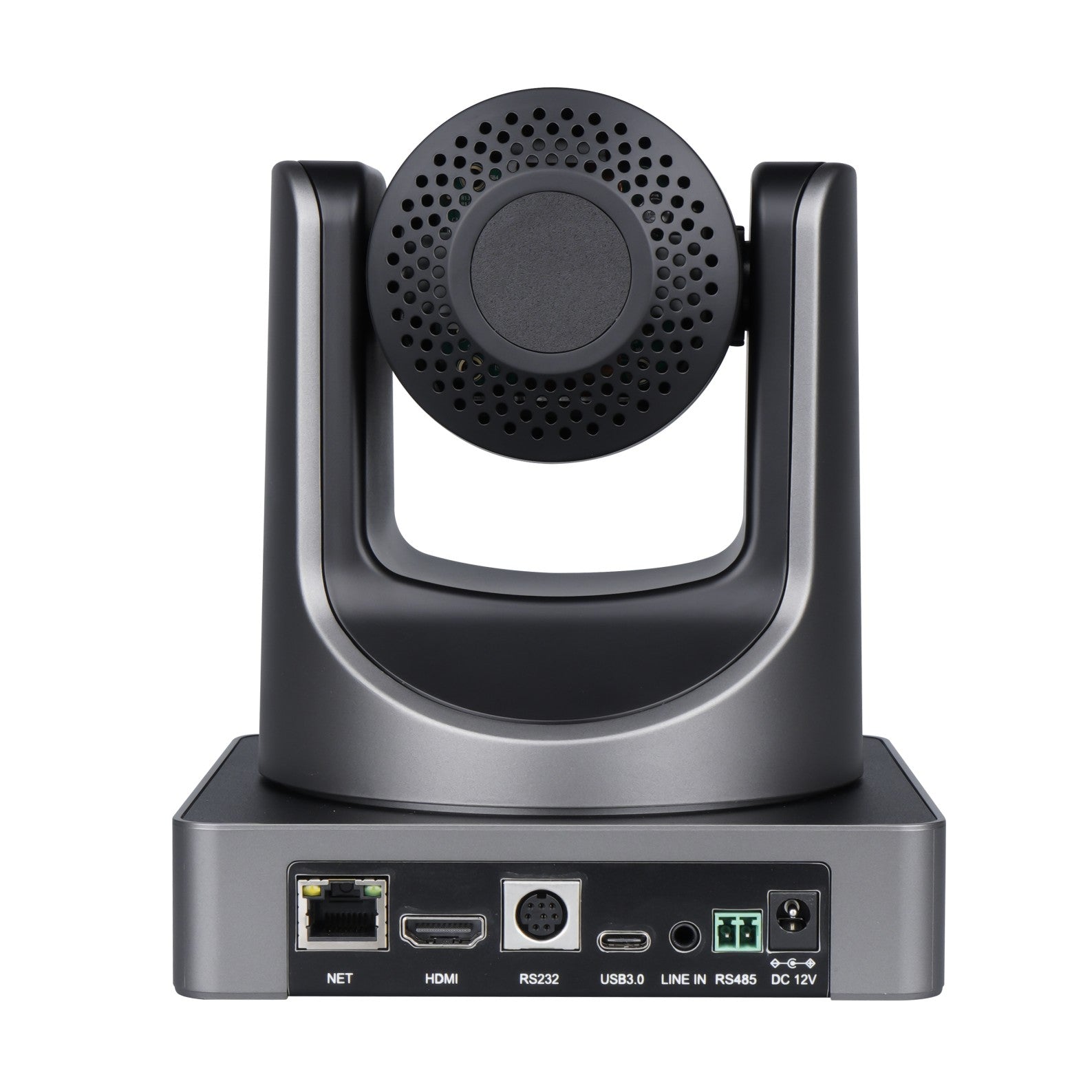

| Interfaces | |
| Network Interface | 1 x NET: 10M/100M Adaptive Ethernet Port |
| USB Interface | 1 x USB3.0: Type-C |
| Video Interface | 1 x HDMI 1.4b |
| Audio Interface | 1 x LINE IN: 3.5mm |
| Communication Interface | 1 x RS232: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P 1 x RS485: 2pin phoenix port; Max. Distance: 1200m; Protocol: VISCA/Pelco-D/Pelco-P |
| Power Interface | JEITA type (DC 12V) |
| General Specifications | |
| Input Voltage | DC 12V/USB 5V/PoE (802.3af) |
| Input Current | 12V 1.0A (max.) /5V 1.5A (max.) |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -40°C~60°C |
| Power Consumption | 12W (max.) |
