Features
Full Featured USB Interface
Full featured USB interface, compatible with USB3.0 and USB2.0, support UVC 1.1 and UAC 1.0 protocol, support video raw image and encoding output.
1080P Full HD
The new high-quality 1/2.8-inch HD CMOS sensor with 2.07 million effective pixels enables high resolution images up to 1920x1080.
Ultra-High Frame Rate
The output frame rate can reach 60fps under 1080P.
20x Optical Zoom
Exclusively customized high-quality ultra-wide-angle lens, support 20x optical zoom and 16x digital zoom.
Low Illumination
The new CMOS image sensor with ultra-high SNR can effectively reduce the image noise under low illumination. The application of 2D and 3D noise reduction algorithm greatly reduces the image noise even under the condition of ultra-low illumination, it keeps the picture clean and clear, and the SNR of image is as high as 55dB.
PoE
The wired network support PoE, the control, power supply, video and audio can be completed with a network cable.
Remote Control
The camera can be controlled remotely through the RS232, RS485, network and USB port.
H.264 Slice
The output H.264 stream support slice encoding modes and suitable for high-end USB conference video applications.
Multiple & Complete Interfaces
Support HDMI, USB3.0, network interface output 1080P video simultaneously.
Multiple Power Supply Modes
Simultaneously support DC 12V power adapter, USB 5V and PoE power supply.
Specifications
| Camera | |
| Video System | 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50 |
| Sensor | 1/2.8-inch, CMOS,Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens | 20x, f= 4.7mm ~ 94mm, F1.6 ~ F3.6 |
| Digital Zoom | 16x |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| SNR | ≥55dB |
| Horizontal FOV | 61.1° ~ 3.5° |
| Vertical FOV | 35.88° ~ 2.0° |
| Pan Angle | ±170° |
| Tilt Angle | -30° ~ +90° |
| Pan Speed | 2.7° ~ 35.7°/s |
| Tilt Speed | 2.7° ~ 31.5°/s |
| Image Flip | Support |
| Image Freeze | Support |
| Preset Position | 255 |
| Preset Accuracy | 0.1° |
| USB Features | |
| Operate System | Windows 7/8/10, Mac OS X, Linux, Android |
| Color System/Compression | YUY2/MJPEG/H.264 |
| Video Format | YUY2: 1080P@60fps (max.) MJPEG: 1080P@60fps (max.) H.264 AVC:1080P@60fps (max.) |
| USB Audio | Support |
| USB Protocol | UVC 1.1 |
| UVC PTZ Control | Support |
| Network Features | |
| Video Compression | H.264/MJPEG |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second Stream Resolution | 1280x720, 1024x576, 720x480, 720x408, 640x360, 480x272, 320x240, 320x180 |
| Video Bit Rate for First Stream | 32kbps ~ 20480kbps |
| Video Bit Rate for Second Stream | 32kbps ~ 6144kbps |
| Bit Rate Control | CBR, VBR |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Type | AAC |
| Audio Bit Rate | 96K, 128K, 256K |
| Network Protocol | TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast, etc. |

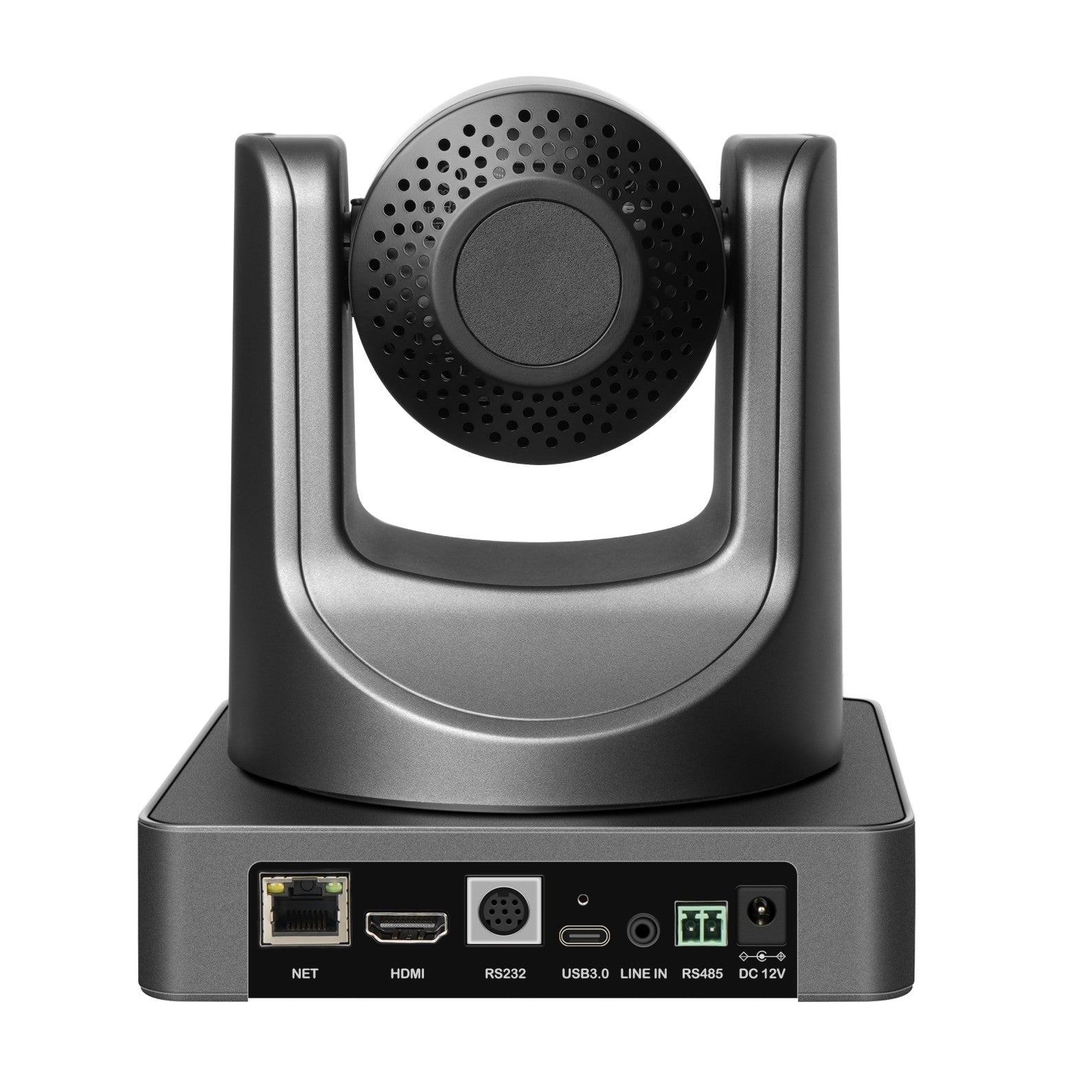

| Interfaces | |
| USB Interface | 1 x USB3.0: Type-C |
| Video Interface | 1 x HDMI: 1.4b |
| Network Interface | 1 x NET: 10M/100M Adaptive Ethernet Port, support PoE |
| Audio Interface | 1 x LINE IN: 3.5mm |
| Communication Interface | 1 x RS232: 8pin min DIN; Max. Distance: 30m; Protocol: VISCA/Pelco-D/Pelco-P 1 x RS485: 2pin phoenix port; Max. Distance: 1200m; Protocol: VISCA/Pelco-D/Pelco-P |
| Power Interface | JEITA type (DC 12V)/USB 5V |
| General Specifications | |
| Input Voltage | DC 12V/USB 5V/ PoE (802.3af) |
| Input Current | 12V 1.0A (max.)/5V 1.5A (max.) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | 12W (max.) |
| Dimension (mm) | 144 x 144 x 167.9 |
| Net Weight | About 1.3Kg |
