Features
● Full-Function USB Interface
Full-function USB Type-C interface, compatible with USB 3.0 and USB 2.0, supports audio, supports encoded output, supports UVC v1.1~1.5 protocol.
● 4K Ultra HD
Using a new generation SONY 1/2.5 inch, maximum 8.42 million pixels high-quality UHD CMOS sensor, capable of achieving 4K (3840x2160) ultra-high-resolution quality images. Also downward compatible with resolutions such as 1080P, 720P, etc.
● 71° Wide Angle Lens + 16x Digital Zoom
Exclusive high-quality true 8 million ultra-high resolution ultra-wide-angle lens, horizontal field of view up to 71°, optical zoom up to 12x, and supports 16x digital zoom.
● Low Light Performance
A new CMOS image sensor with ultra-high signal-to-noise ratio effectively reduces image noise in low light conditions, applying both 2D and 3D noise reduction algorithms, significantly lowering image noise; even in ultra-low light, the image remains clean and clear with a signal-to-noise ratio of over 55dB.
● PoE Support
Wired network supports PoE power supply, control, power supply, video, and audio can all be done with a single network cable.
● Remote Control
Multiple control methods using RS232 (RS485 optional) serial port, network, and USB to control the camera.
● Rich and Complete Interfaces
Supports HDMI, USB 3.0, network interface can simultaneously output 4K video.
Specifications
| Camera | |
| Signal System | HDMI: 4KP30fps, 4KP29.97fps, 4KP25, 1080P30, 1080P29.29, 1080P25 |
| Sensor | 1/2.5 inch, CMOS, Effective Pixels: 8.51 million |
| Scanning Mode | Progressive |
| Lens | 12x, f4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Digital Zoom | 16x |
| Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One-Button, Manual, Specified Color Temperature |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| Signal-to-Noise Ratio | ≥55dB |
| Horizontal Field of View | 71° ~ 8.2° |
| Vertical Field of View | 42.7° ~ 4.5° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Horizontal Rotation Speed Range | 2.7° ~ 35.7°/s |
| Vertical Rotation Speed Range | 2.7° ~ 31.5°/s |
| Horizontal and Vertical Inversion | Supported |
| Image Freeze | Supported |
| Preset Position Count | 255 |
| Preset Position Accuracy | 0.1° |
| USB Features | |
| Supported Operating Systems | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color Space/Compression | YUY2 / MJPEG / H.264 / H.265 |
| Video Standards |
YUY2 (Real-time Mode): Maximum 1440P@30fps MJPEG: Maximum 2160P@30fps H.264 AVC: Maximum 2160P@30fps H.264 SVC: Maximum 2160P@30fps H.265 AVC: Maximum 2160P@30fps |
| USB Audio | Supported |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ Control | Supported |
| IPC Features | |
| Video Encoding Standards | H.265/H.264/MJPEG |
| Video Bitstream | Primary Stream, Secondary Stream |
| Primary Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Secondary Stream Resolution | 1920x1080, 1280x720, 1024x576, 720x576, 720x480, 720x408, 640x360, 480x270, 320x240, 320x180 |
| Video Bit Rate | 32Kbps ~ 102400Kbps |
| Bit Rate Control | Variable Bit Rate, Fixed Bit Rate |
| Frame Rate | 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps |
| Audio Compression Standard | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Supported Protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |

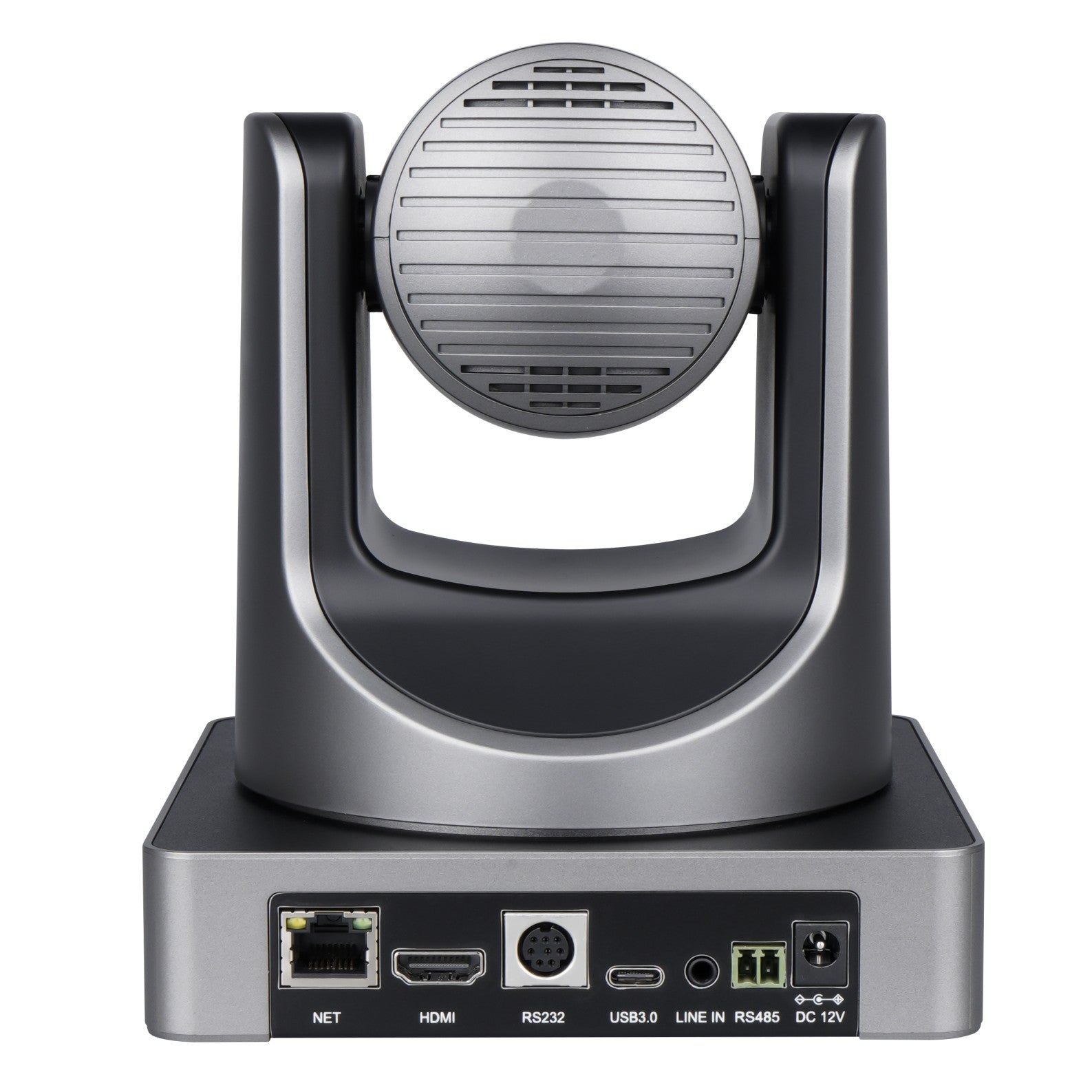

| Input Output Interfaces | |
| USB Interface | 1 xUSB 3.0, Type-C connector |
| HDMI Output | 1 xHDMI |
| Network Interface | 1 xRJ45: 10M/100M adaptive Ethernet port |
| Audio Interface | 1 xLine In, 3.5mm audio interface |
| Communication Interface | 1 xRS232 In: 8-pin mini DIN, maximum distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 xRS485 In (optional): 2-core phoenix connector, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
| Power Interface | JEITA type (DC IN 12V) |
| General Specifications | |
| Input Voltage | DC 12V/PoE (802.3af) |
| Input Current | 12V 1.0A (max) |
| Operating Temperature | -10°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | 12W (maximum) |
| Mean Time Between Failures | >30000 hours |
| Dimensions | 144mm x 144mm x 167.9mm |
| Net Weight | 1.5kg |
