Features
● Full-Function USB Interface
Full featured USB Type-C interface, compatible with USB3.0 and USB2.0, support audio and encoding output, support UVC 1.1 protocol.
● 4K Ultra HD
The new high-quality 1/1.8-inch UHD CMOS sensor with 8.42 million effective pixels for ultra-high resolution up to 4K (3840x2160), downward compatible with 1080P, 720P and other resolutions.
● HDMI 1.4b
Support HDMI1.4b, can directly output uncompressed 4K original video.
● 20x Optical Zoom
Exclusively customized high-quality 4K ultra-wide-angle lens with 20x optical zoom and 60° field angle of view. Support night vision mode and the infrared filter can be switched automatically.
● Low Illumination
The new CMOS image sensor with ultra-high SNR can effectively reduce the image noise under low illumination. The application of 2D and 3D noise reduction algorithm greatly reduces the image noise even under the condition of ultra-low illumination, it keeps the picture clean and clear, and the SNR of image is as high as 55dB.
● PoE Support
Wired network supports PoE power supply, control, power supply, video, and audio can all be done with a single network cable.
● Remote Control
Multiple control methods using RS232 (RS485 optional) serial port, network, and USB to control the camera.
● Rich and Complete Interfaces
Supports HDMI, USB 3.0, network interface can simultaneously output 4K video.
● Multiple Power Supply Modes
Simultaneously support DC 12V power adapter and PoE power supply.
Specifications
| Camera | |
| Signal System | HDMI: 4KP30fps, 4KP29.97fps, 4KP25, 1080P30, 1080P29.29, 1080P25 |
| Sensor | 1/1.8 inch, CMOS, Effective Pixels: 8.51 million |
| Scanning Mode | Progressive |
| Lens | 20x, f=6.25mm ~ 125mm, F1.58 ~ F3.95 |
| Digital Zoom | 16x |
| Minimum Illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One-Button, Manual, Specified Color Temperature |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
| Signal-to-Noise Ratio | ≥55dB |
| Horizontal Field of View | 60° ~ 3.5° |
| Vertical Field of View | 35.7° ~ 2.0° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | -30° ~ +90° |
| Horizontal Rotation Speed Range | 2.7° ~ 35.7°/s |
| Vertical Rotation Speed Range | 2.7° ~ 31.5°/s |
| Horizontal and Vertical Inversion | Supported |
| Image Freeze | Supported |
| Preset Position Count | 255 |
| Preset Position Accuracy | 0.1° |
| USB Features | |
| Supported Operating Systems | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Color Space/Compression | YUY2 / MJPEG / H.264 / H.265 |
| Video Standards |
YUY2 (ISOC): 1440P@30fps (max.) MJPEG: 2160P@30fps (max.) H.264 AVC:2160P@30fps (max.) |
| USB Audio | Supported |
| USB Video Communication Protocol | UVC 1.1 |
| UVC PTZ Control | Supported |
| IPC Features | |
| Video Encoding Standards | H.265/H.264/MJPEG |
| Video Bitstream | Primary Stream, Secondary Stream |
| Primary Stream Resolution | 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Secondary Stream Resolution | 640x360, 480x270, 320x240, 320x180 |
| Video Bit Rate | 32Kbps ~ 20480Kbps |
| Bit Rate Control | Variable Bit Rate, Fixed Bit Rate |
| Frame Rate | 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps |
| Audio Compression Standard | AAC |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps |
| Supported Protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |

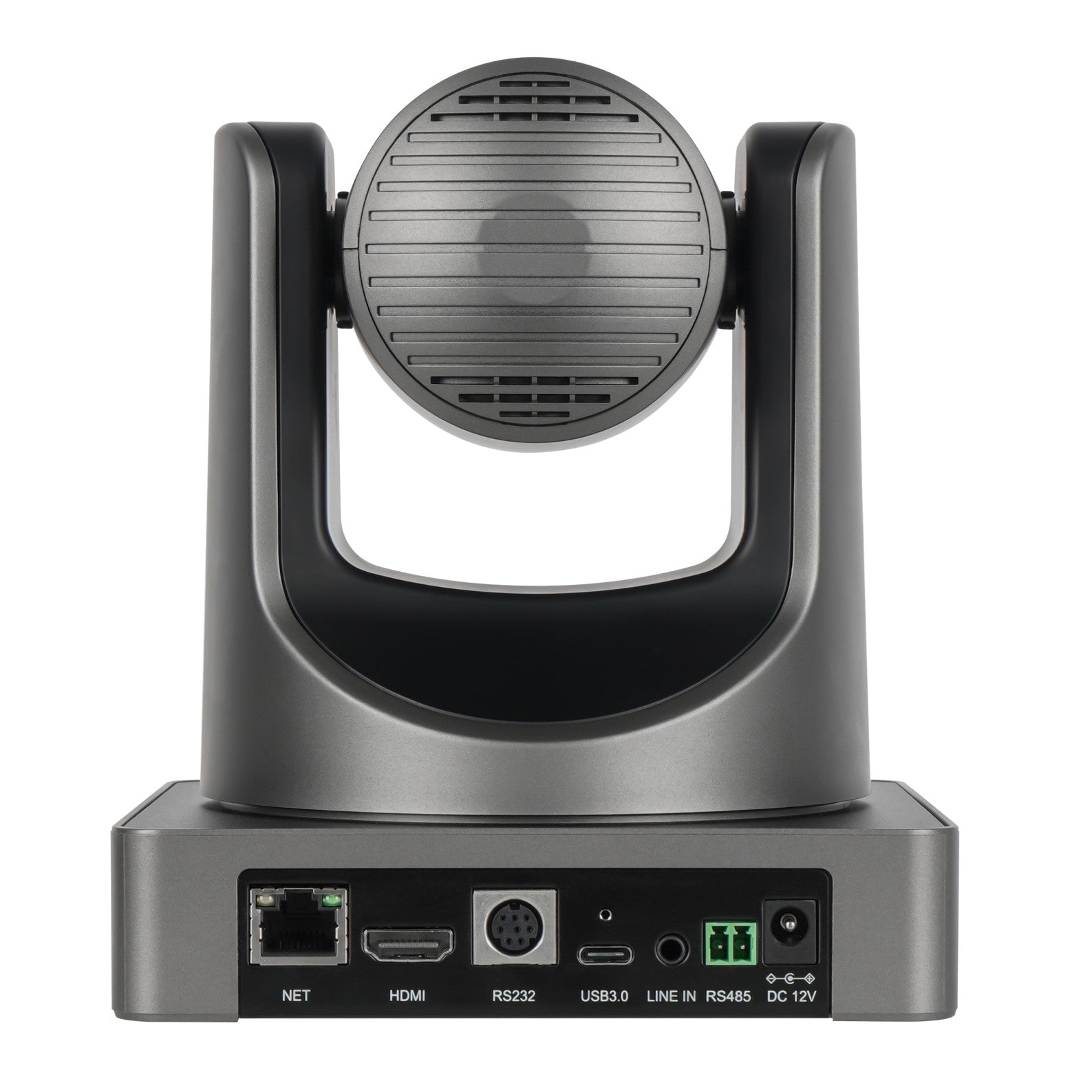

| Input Output Interfaces | |
| USB Interface | 1 xUSB 3.0, Type-C connector |
| HDMI Output | 1 xHDMI |
| Network Interface | 1 xRJ45: 10M/100M adaptive Ethernet port |
| Audio Interface | 1 xLine In, 3.5mm audio interface |
| Communication Interface | 1 xRS232 In: 8-pin mini DIN, maximum distance: 30 meters, VISCA/Pelco-D/Pelco-P protocol 1 xRS485 In (optional): 2-core phoenix connector, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol |
| Power Interface | JEITA type (DC IN 12V) |
| General Specifications | |
| Input Voltage | DC 12V/PoE (802.3af) |
| Input Current | 12V 1.0A (max) |
| Operating Temperature | -10°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | 12W (maximum) |
| Mean Time Between Failures | >30000 hours |
| Dimensions | 144mm x 144mm x 167.9mm |
| Net Weight | 1.5kg |
