SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H
  • Load image into Gallery viewer, SMTAV PTZ Camera, HD17H

SMTAV PTZ Camera, HD17H

Vendor
SMTAV
Regular price
$399.00
Sale price
$399.00
Regular price
$700.00
Sold out
Unit price
per
Shipping calculated at checkout.

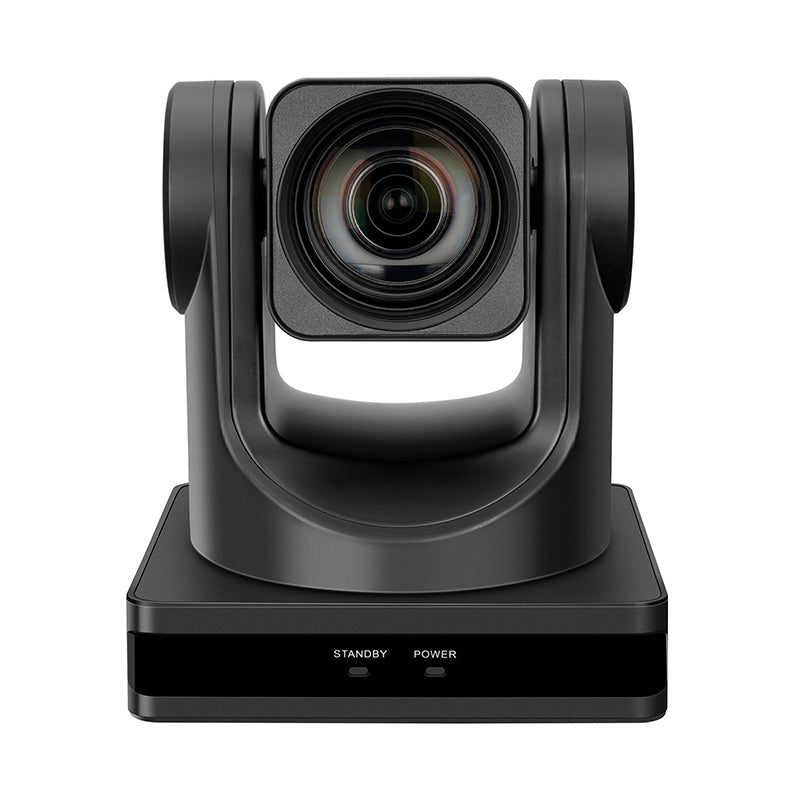

SMTAV NDI PTZ Camera, 12x optical zoom, and 16x digital zoom,high-speed PTZ, HDMI USB3.0 NETWORK output,1080p60 Full HD Video Conference Cameras

About this item

  • Full Function USB Interface: Full function USB interface, compatible with USB3.0 and USB2.0, support audio, compressed video output and UVC v1.1~1.5 protocol.
  • 1080P Full HD: Equip with 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and ach+A39:A51ieve quality image, The output frame rate can reach 60fps under 1080P.
  • Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom. Support HMDI, USB3.0, network interface can output 1080P video at the same time.
  • PoE support: Wired networks support PoE power supply. Control, power supply, video, and audio can be completed by using only one cable.

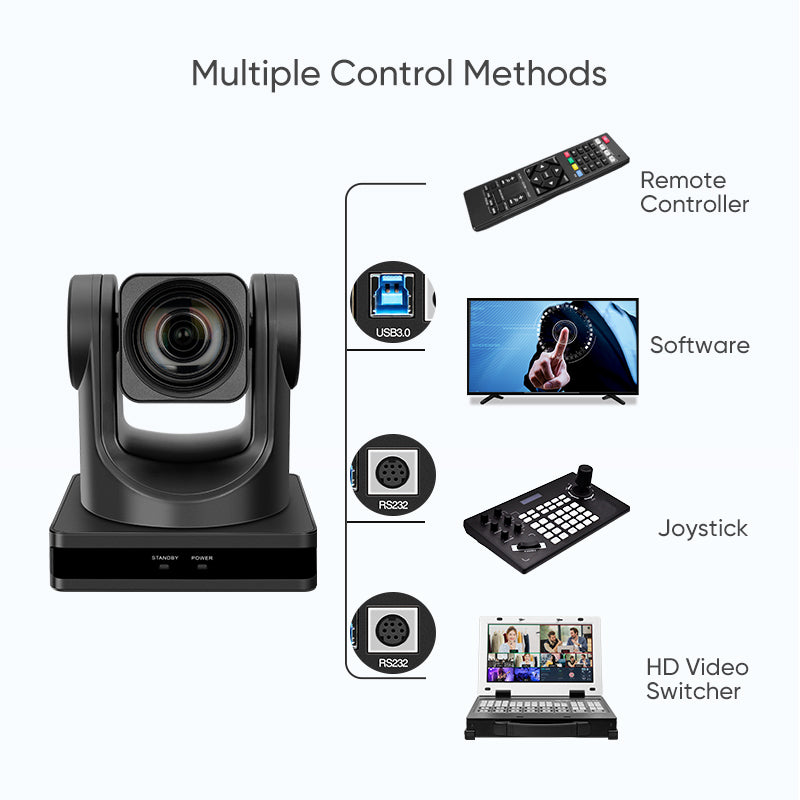

  • Remote Control: Multiple control modes, using RS232, RS485, network and USB to control the camera.
  • Support USB 5V power supply, 12V power adapter power supply and PoE power supply.

Product Description

Camera

  • Video System:  1080P60,1080P50,1080P30,1080P25,720P60,720P50
  • Sensor: 1/2.8'', CMOS, Effective Pixel: 2.07M
  • Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
  • Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
  • Digital Noise Reduction: 2D&3D Digital Noise Reduction
  • Video S/N: ≥55dB
  • Angle of View  H: 72.5° ~ 6.9° / V : 44.8° ~ 3.9°

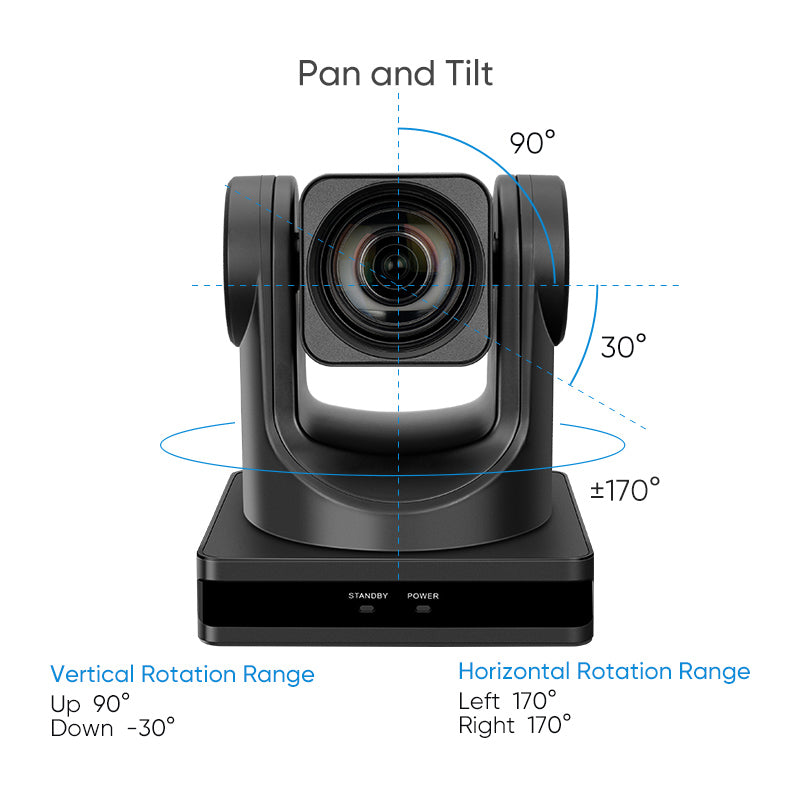

  • Rotation Range  H : ±170° V: -30° ~ +90°
  • H & V Flip Support
  • Image Freeze Support
  • Number of Preset  255
  • Preset Accuracy  0.1°

USB Featured

  • Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System / Compression YUY2 / H.264 / MJPEG
  • Video Format YUY2 : Max 1080P@60fps
  • Audio on USB Support
  • UVC PTZ control: Support

IPC Features

  • Video Compression H.264/MJEPG
  • Video Stream Main Stream, Sub Stream
  • Main Stream Resolution 1920x1080,1280x720,1024x576,960x540,640x480,640x360
  • Sub Stream Resolution 1280x720,1024x576,720x480,720x408,640x360,320x240,320x180
  • Audio Compression AAC
  • Support protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.

Input/Output Interface

  • Video Oupputs: USB3.0, HDMI1.4b,10M/100M Ethernet
  • Audio Interface :3.5mm Audio Interface, Line In
  • Communication Interface 1xRS232  1xRS485
  • Protocol: VISCA/Pelco-D/Pelco-P
  • Power Jack JEITA type(DC IN 12V)/USB B type(DC IN 5V)/PoE

Generic Specification

  • Input Voltage DC 12V/DC 5V/PoE(802.3af)
  • Power Consumption 12W(max)
  • Size 144mm x 144mm x 167.9mm
