LIMITED TIME PROMOTION BUNDLE - SAVE $550!
Upgrade your live streaming and broadcast production with this complete professional camera system. This bundle includes 3x SMTAV 4KP60 UHD PTZ Cameras with AI auto-tracking and 1x KC2000 Super Controller – everything you need for multi-camera production right out of the box.
📦 What's Included:

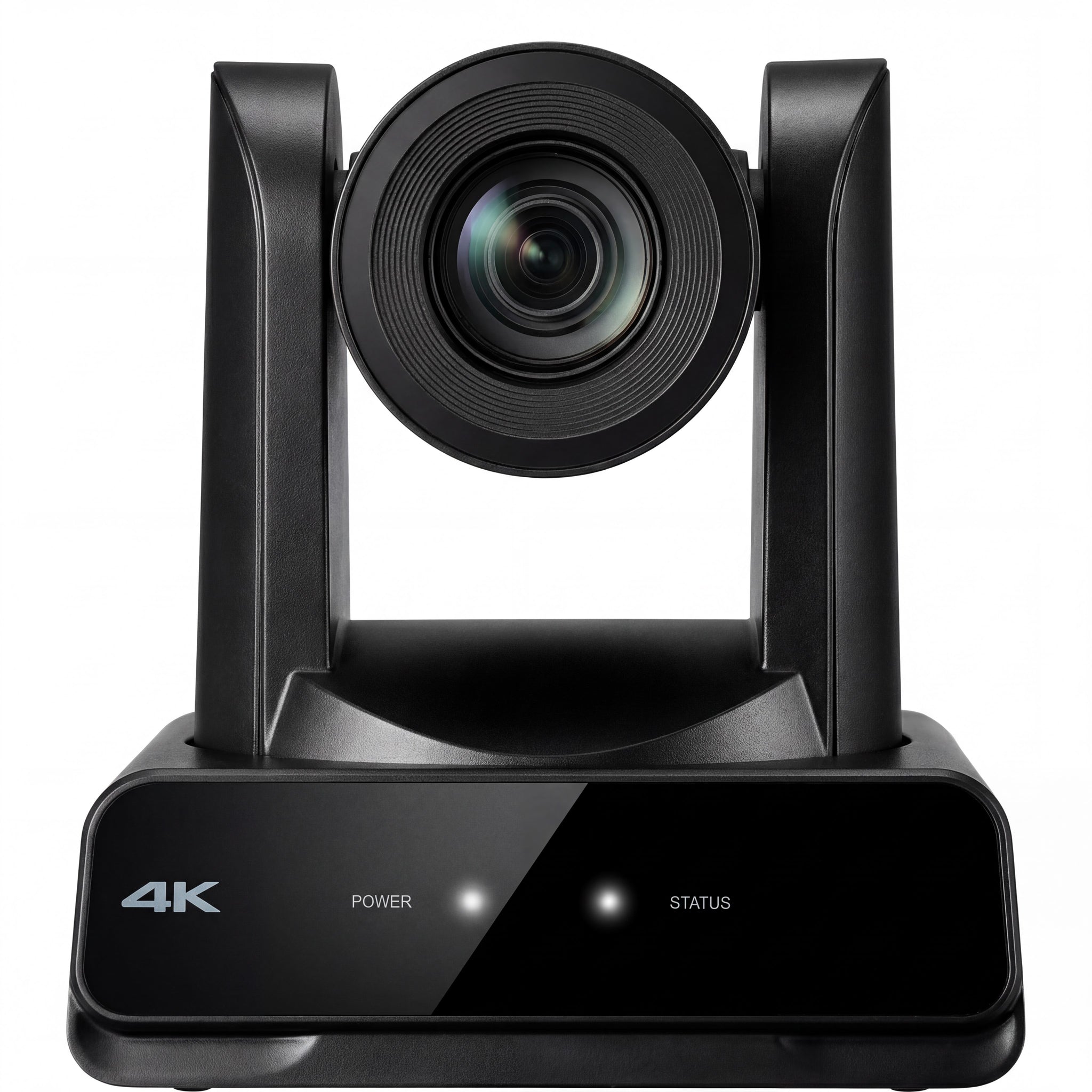

✅ 3x SMTAV 4K PTZ Camera (20X Optical Zoom)
- 4K UHD resolution @ 60fps (3840×2160)
- 20X optical zoom lens
- AI-powered auto tracking
- NDI|HX protocol support
- Multiple outputs: HDMI, 3G-SDI, USB, IP streaming
- VISCA, VISCA over IP, ONVIF, Pelco-D/P compatible
- PoE power support

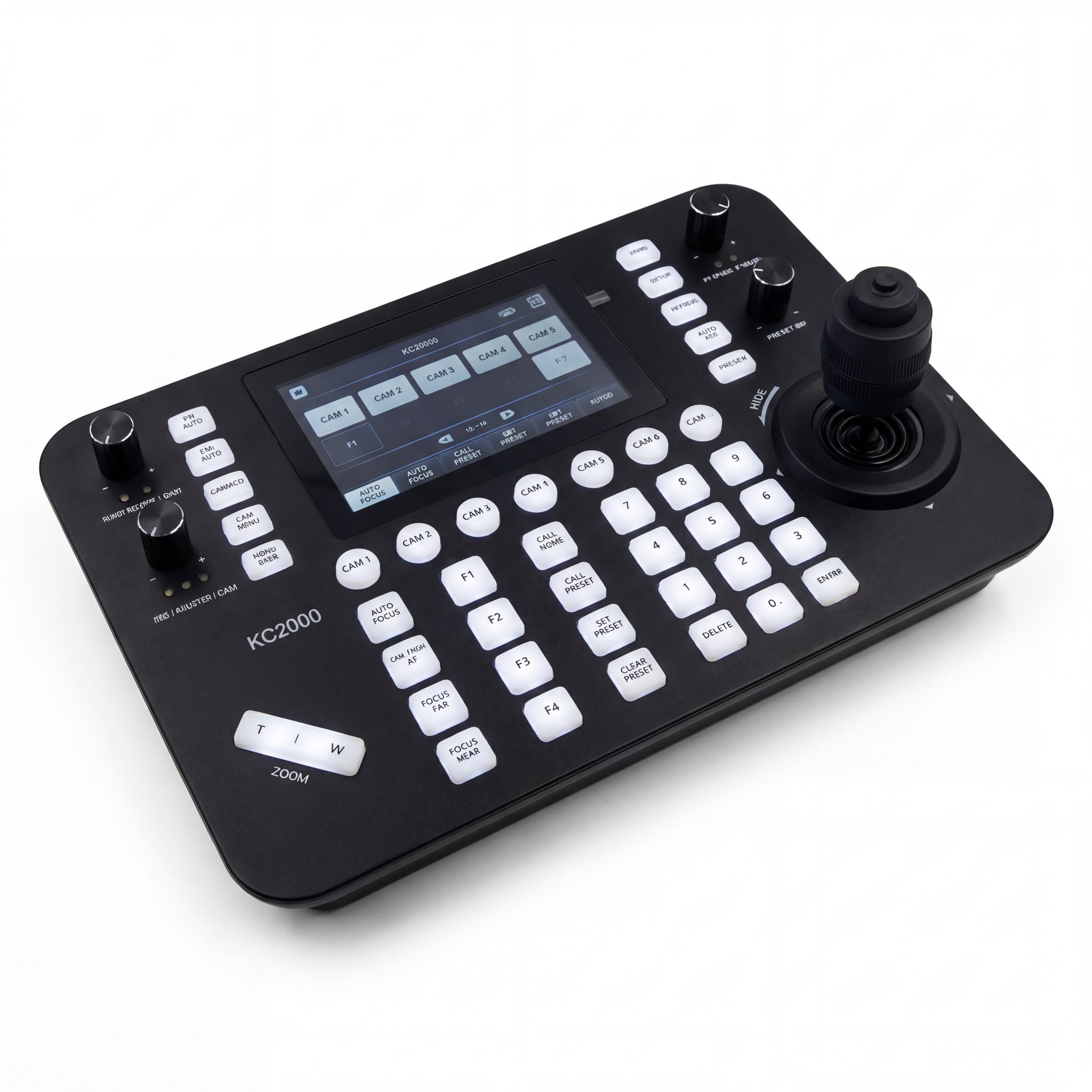

✅ 1x KC2000 Professional PTZ Controller
- 5-inch HD touchscreen (1280×720)
- H.264/H.265 video decoding up to 4K@60fps
- Control up to 999 cameras
- 4-dimensional pressure-sensitive joystick
- Professional adjustment knobs (iris, shutter, gain, focus)
- Preset position management (save/call/delete)
- Backlit keyboard design
- Multiple control protocols: VISCA, ONVIF, NDI, Pelco
🎬 Perfect For:

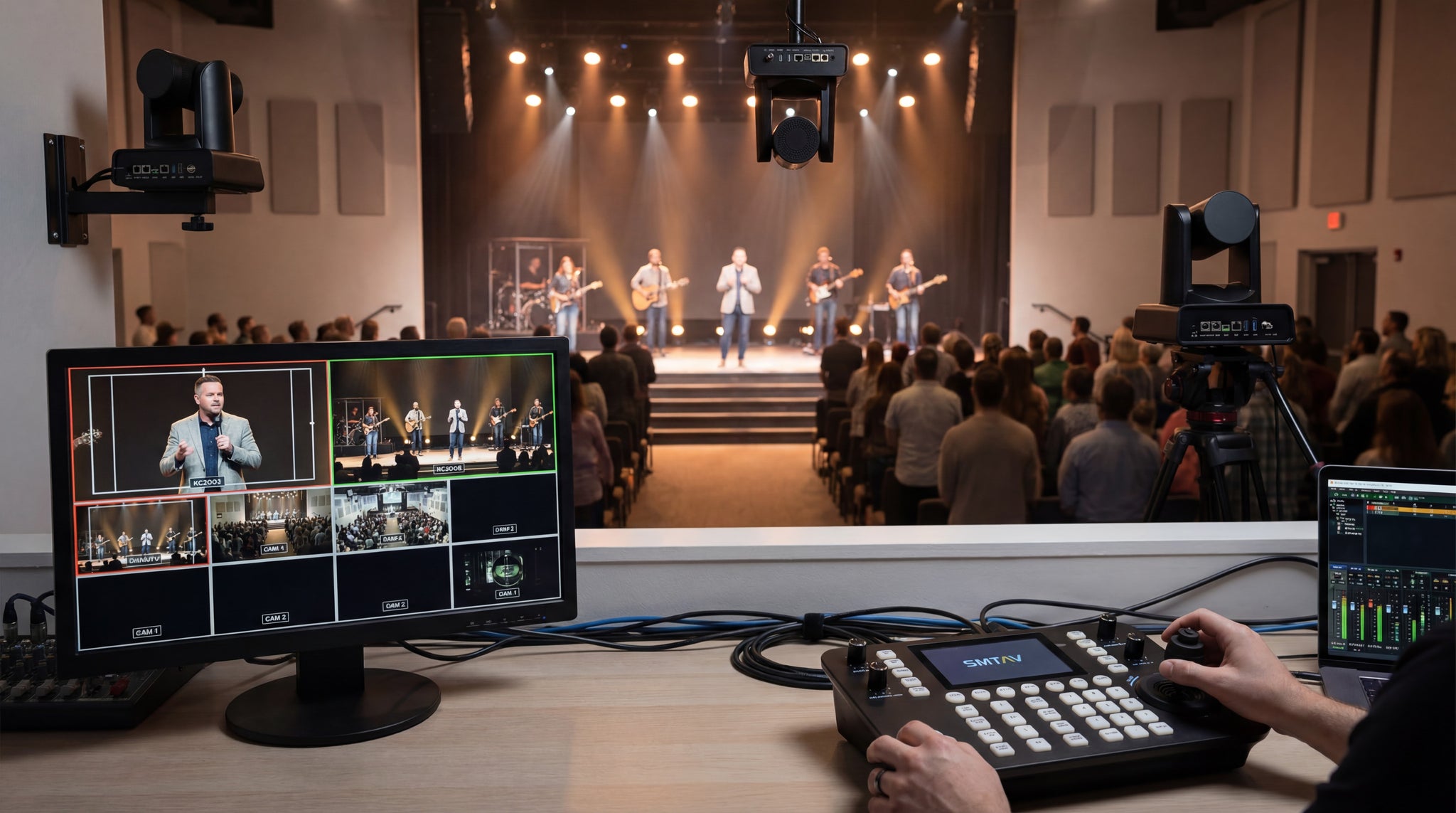

- Churches & Houses of Worship – Multi-angle worship service streaming
- Conference Rooms – Professional meeting capture and webinars
- Broadcast Studios – Live TV production and recording
- Education – Lecture capture and distance learning
- Live Events – Concerts, sports, theater performances
- Corporate Streaming – Town halls, product launches, training
🚀 Key Features:
AI Auto Tracking Technology Advanced AI algorithm automatically tracks speakers and moving subjects, keeping them perfectly framed without manual operation.
NDI|HX Network Video Stream high-quality 4K video over standard Ethernet networks. Compatible with OBS, vMix, Wirecast, and all major NDI-compatible software.
20X Optical Zoom Capture distant subjects with crystal clarity. Perfect for large venues where cameras must be positioned far from the stage.
Multi-Protocol Support Works with virtually any control system: VISCA, VISCA over IP, ONVIF, Pelco-D, Pelco-P. Seamlessly integrates into existing setups.
Professional Controller The KC2000 gives you broadcast-grade control with real-time preview, preset recall, and intuitive joystick operation. Control all 3 cameras from one central workstation.
Flexible Connectivity Multiple output options (HDMI, 3G-SDI, USB, IP) ensure compatibility with any production workflow. Mix and match outputs as needed.
📊 Technical Specifications:
Camera Specs:
Imaging System:
- Image Sensor: 1/2.8" High Quality CMOS Sensor
- Effective Pixels: 8.42M (16:9)
- Video Resolution: 4K@60/50/30/25fps, 1080p@60/50/30/25fps, 720p@60/50fps
- Min. Illumination: 0.5 Lux @ F1.8 (AGC ON)
- Signal-to-Noise Ratio: >50dB
Lens Specifications:
- Optical Zoom: 20X
- Digital Zoom: 16X
- Focal Length: f=5.05~91.49mm
- Field of View (FOV):
- Diagonal: 3.93° ~ 67.35°
- Horizontal: 3.81° ~ 60.04°
- Vertical: 1.96° ~ 35.07°
- Aperture Ratio: F1.8 – F2.9
- Focus: Auto/Manual/One-button focus
Video Processing:
- White Balance: Auto/Manual/One-key/Specified color temperature (2400K-7100K, adjustable in 100K steps)
- Digital Noise Reduction: 2D & 3D
- Backlight Compensation: On/Off
- Dynamic Range: Off/Adjustable
- Video Adjustment: Brightness, Contrast, Sharpness, Horizontal/Vertical Flip, B&W Mode, Gamma Curve, Electronic Zoom, DCI, Ultra Low Light Mode
Video Outputs & Formats:
- HDMI: 4K@60/50/30/25fps, 1080p@60/50/30/25fps, 720p@60/50fps
- 3G-SDI: 1080p@60/50/30/25fps, 1080i@60/50fps, 720p@60/50fps (supports 100m transmission @ 1080p60)
-
USB 3.0:
- YUY2/NV12: Up to 1080p@30/25fps
- H.264/H.265/MJPEG: Up to 4K@60fps
-
LAN (Network):
- Main Stream: H.264/H.265 up to 4K@60fps
- Sub Stream: H.264/H.265 up to 1080p@60fps
- Video Bitrate: 64Kbps ~ 40960Kbps (adjustable)
- Bitrate Control: CBR (Constant) / VBR (Variable)
Audio System:
- Audio Input: Dual-channel 3.5mm linear input
- Audio Output: HDMI, LAN, USB 3.0, 3G-SDI
- Audio Encoding: AAC, G.711A
- Audio Bitrate: 32/48/64/96/128 Kbps
- AAC Sampling Rate: 16000/32000/44100/48000 Hz
- G.711A Sampling Rate: 8000 Hz
Network & Protocols:
- Network Interface: 1000M Ethernet (Gigabit), PoE+ optional
- Streaming Protocols: RTSP, RTMP, SRT, ONVIF, GB/T28181
- Optional Protocols: NDI|HX, Dante AV-H
- Control Protocol: VISCA, VISCA over IP, Pelco-D, Pelco-P
- Network Features: RTMP push, RTP multicast, remote upgrade/reboot/reset
Pan-Tilt System:
- Pan Range: ±170°
- Tilt Range: -30° ~ +90°
- Pan Control Speed: 0.1°/s ~ 60°/s
- Tilt Control Speed: 0.1°/s ~ 30°/s
- Preset Speed: Pan 60°/s, Tilt 30°/s
- Preset Positions: 255 (10 via remote control)
- Motor Type: High-precision stepper motor with ultra-silent operation
AI Tracking:
- Tracking Modes: Off, Real-time Tracking, Stage Tracking, Area Tracking, Intelligent Framing
- Tracking Distance: Up to 18 meters
- Recognition: Face detection and human shape recognition
- Application Scenarios: Conference rooms, classrooms, churches, lecture halls
Control Interfaces:
- RS232-IN, RS232-OUT (supports cascading)
- RS485
- Baud Rate: 2400/4800/9600/38400/115200
- USB 3.0: UVC (Video) + UAC (Audio)
Display & Features:
- Built-in OLED Display: Shows output resolution and IP address
- Low-power Sleep Mode: <400mW power consumption
- Remote Control: Infrared or 2.4G wireless (not affected by angle/distance)
Power & Physical:
- Input Voltage: DC 12V ± 10%
- Input Current: ≤1.5A
- Total Power Consumption: ≤18W
- Power Adapter: Input AC 110V~220V, Output DC 12V/1.5A
- PoE Support: 802.3af (optional)
- Dimensions: 150mm (L) × 150mm (W) × 167.5mm (H)
- Weight: 1.4kg (approx.)
Environmental:
- Operating Temperature: -10°C ~ +50°C
- Storage Temperature: -10°C ~ +70°C
- Operating Humidity: 20% ~ 80%
- Storage Humidity: 20% ~ 95%
- Environment: Indoor use
Optional Features:
- NDI|HX: H.264 encoding, 1080p60/720p60, Unicast/Multicast, <120ms latency @ 1080p60, 4-8Mbps bandwidth
- Dante AV-H: Professional audio-over-IP integration
KC2000 Controller Specs:
- Display: 5" TFT LCD touchscreen (1280×720)
- Decoding: H.264, H.265, up to 4K@60fps
- Controllable Cameras: Up to 999
- Protocols: VISCA, VISCA over IP, ONVIF, Pelco-D/P, NDI (optional)
- Interfaces: RS232, RS485/RS422, RJ45 (PoE), USB-A, DC 12V
- Joystick: 4-dimensional variable speed with pressure sensing
- Programmable Keys: F1-F4 customizable shortcuts
- Power: DC 12V / PoE (802.3af)
- Dimensions: 305 × 205 × 110mm
- Weight: 1.05kg
💡 Why Choose This Bundle?
✓ Plug-and-Play Solution – Pre-configured and tested. Start streaming in minutes.
✓ Cost-Effective – Save $350 vs. buying components separately. Bundle discount + free shipping.
✓ Scalable System – The KC2000 can control up to 999 cameras. Expand your setup anytime.
✓ OBS & vMix Ready – Fully compatible with popular streaming software. No complicated setup.
✓ Professional Quality – Broadcast-grade image quality and reliable performance for mission-critical productions.
✓ 2-Year Warranty – Comprehensive coverage and lifetime technical support.
📦 Package Contents:

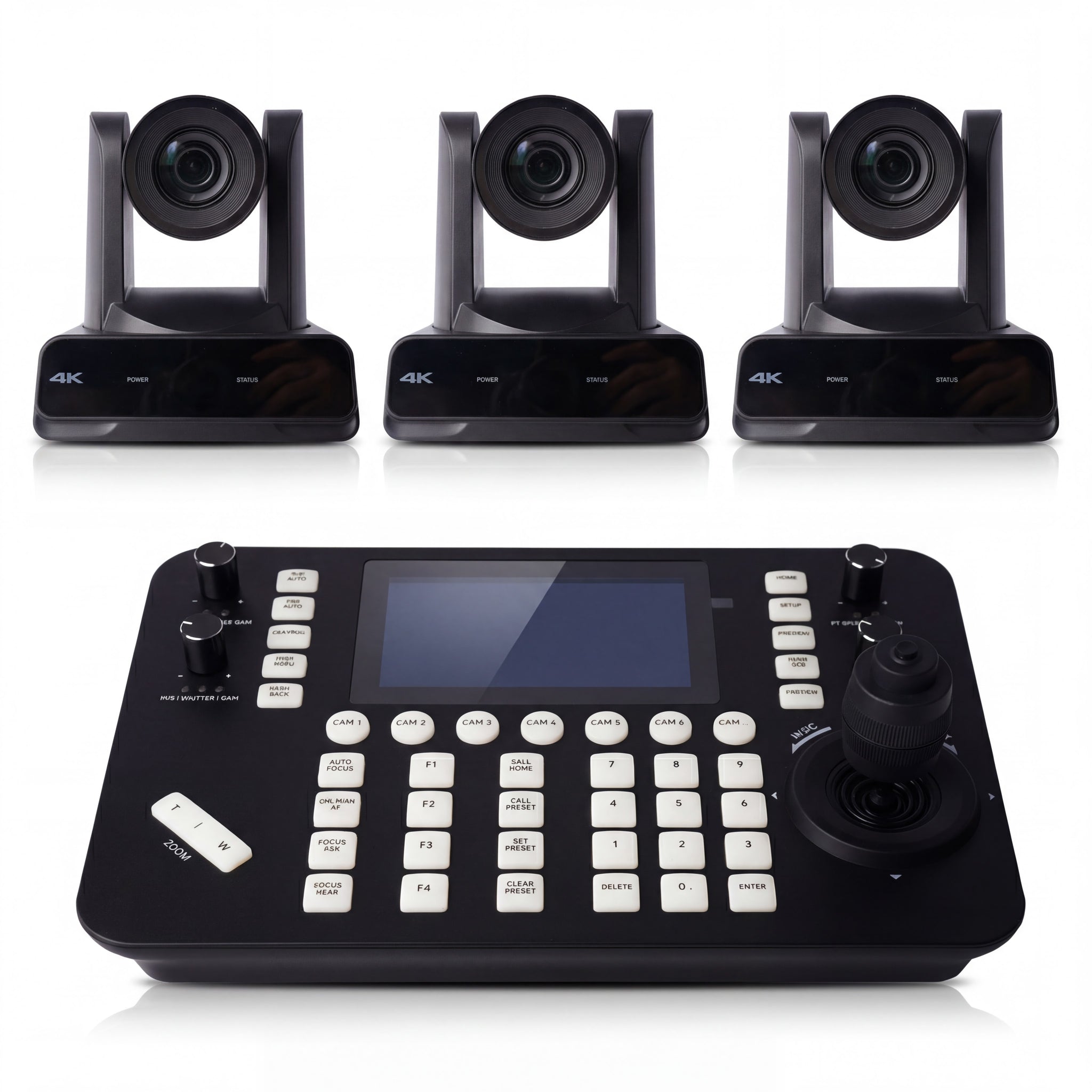

- 3× SMTAV 4K PTZ Camera
- 3× User Manual
- 3 x Wall Mount Bracket (If you need Ceiling Mount Bracket please make notes when ordered)
- 3× Power Adapter (DC 12V)
- 1× KC2000 PTZ Controller
- 1× Controller Power Adapter
- 1× User Manual
🌍 Free Worldwide Shipping
We offer free express shipping to most countries. Estimated delivery: 5-7 business days.
🎁 BONUS: What You Get FREE
- $350 Bundled Solution Discount
- Free Worldwide Shipping (Value: $80)
- Extended 2-Year Warranty (Value: $120)
- Lifetime Technical Support
- Free Firmware Updates
Total Savings: $550+
❓ Frequently Asked Questions:
Q: Is this compatible with OBS Studio? A: Yes! The cameras support NDI|HX protocol which works seamlessly with OBS (with NDI plugin), vMix, Wirecast, and other NDI-compatible software.
Q: Can I add more cameras later? A: Absolutely. The KC2000 controller can manage up to 999 cameras, so you can expand your system anytime.
Q: Do I need a PoE switch? A: PoE is optional. Each camera and the controller come with DC power adapters. PoE simplifies installation by delivering power and data over a single cable.
Q: What's the difference between NDI and NDI|HX? A: NDI|HX is a bandwidth-efficient version of NDI that delivers high-quality video over standard networks. It's perfect for multi-camera setups without requiring expensive 10GbE infrastructure.
Q: Can I control the cameras from my computer? A: Yes. The cameras support VISCA over IP and ONVIF, so you can control them via software on Windows/Mac. The KC2000 controller provides a dedicated hardware interface for more tactile control.
Q: What warranty is included? A: All products include a 2-year manufacturer warranty covering defects and malfunctions. We also provide lifetime technical support.
