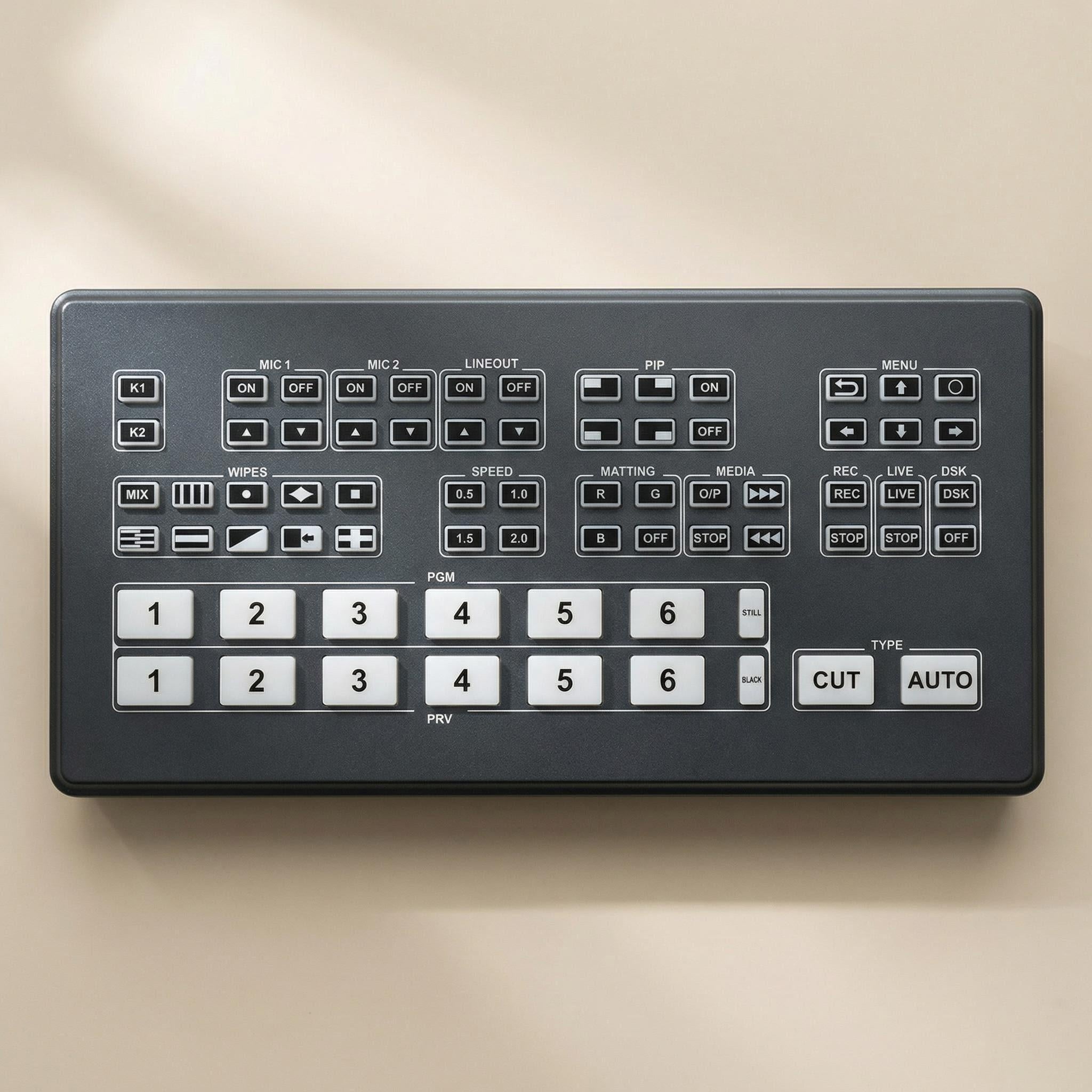

Elevate Your Live Production Transform your multi-camera setup with this professional Mini SDI Video Switcher. Perfectly designed for live broadcasts, video conferences, weddings, e-sports, and music production.

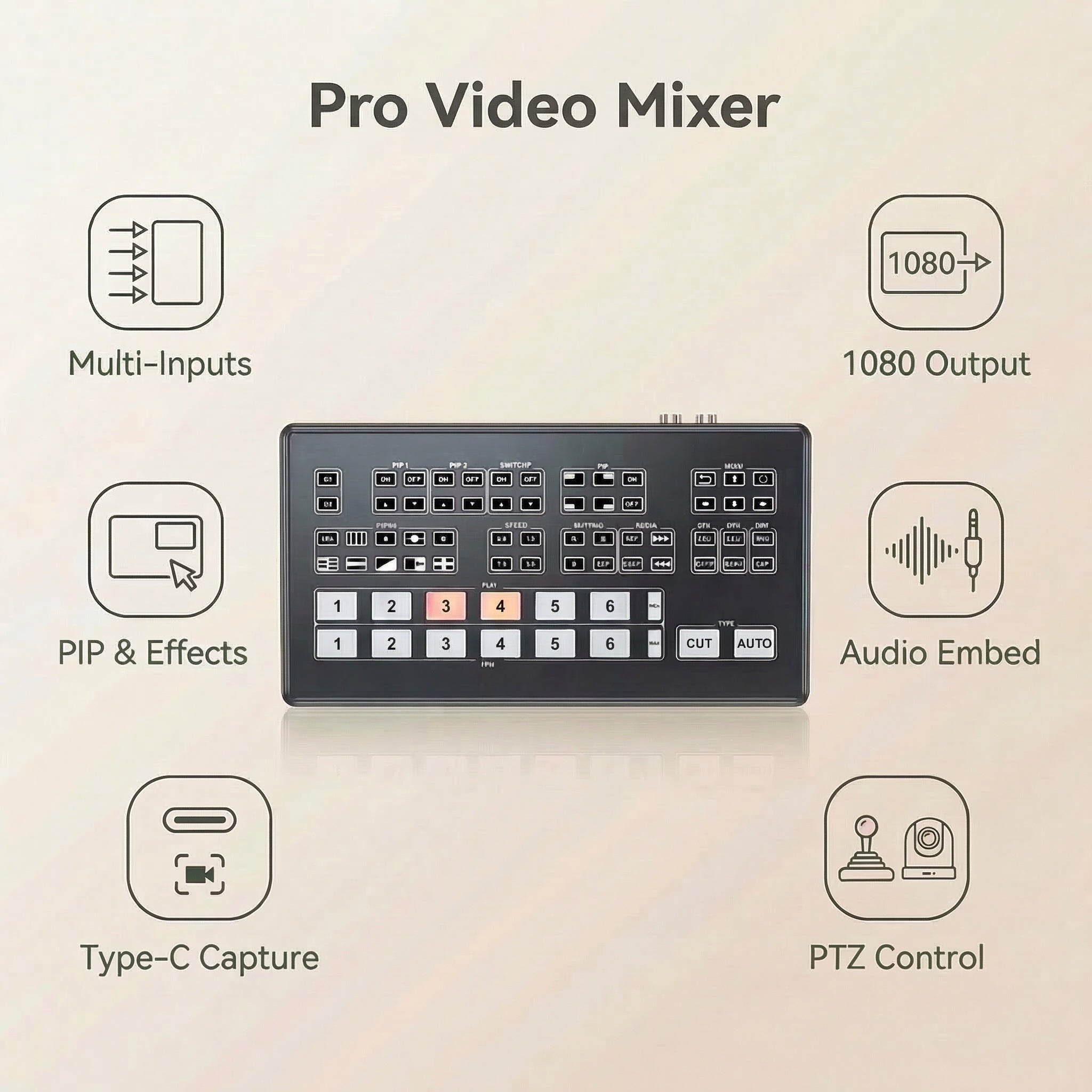

Core Features & Performance:

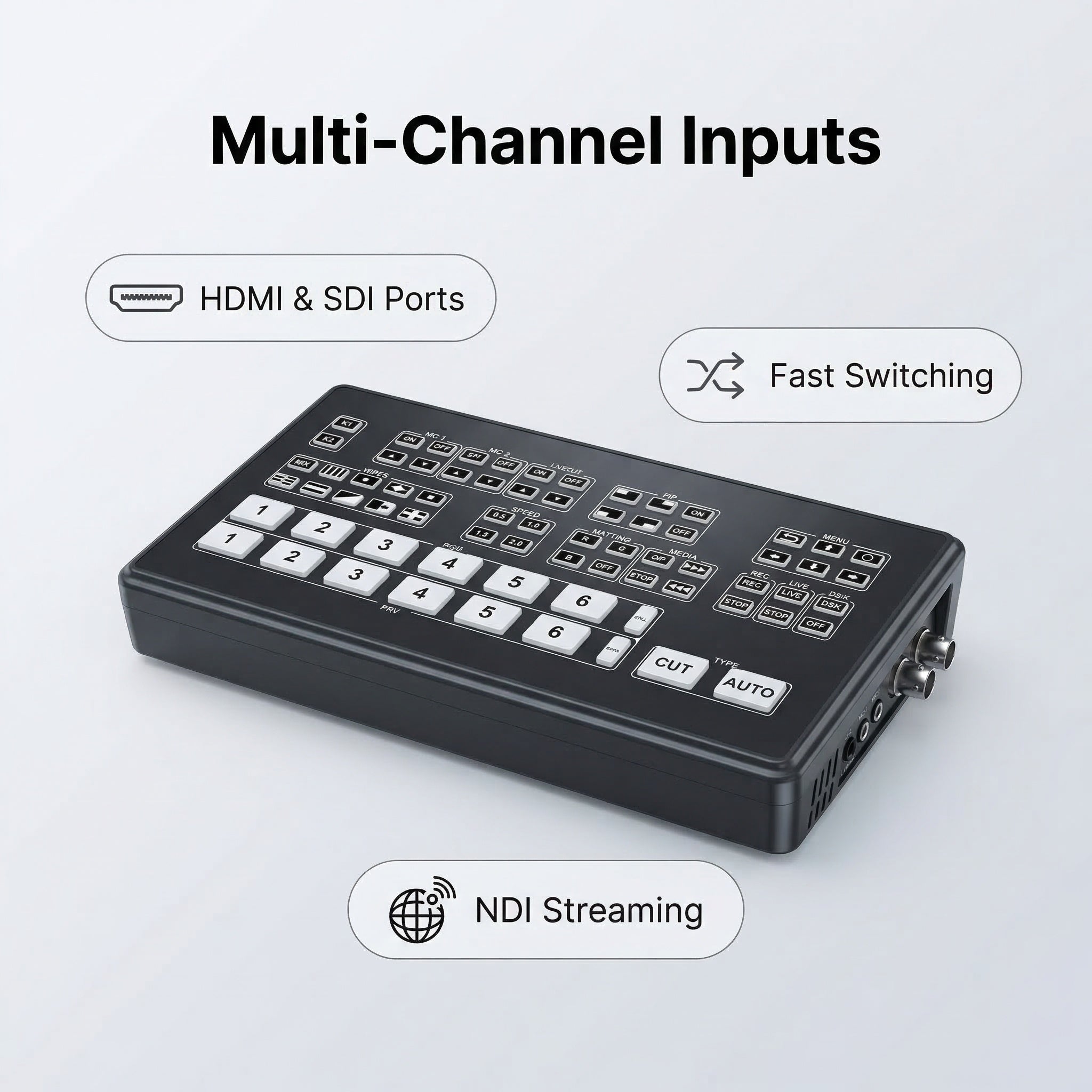

6-Channel Video Inputs: Seamlessly connect and switch between 4 HDMI video signals and 2 SDI video signals.
Direct-to-PC Streaming: The built-in Type-C video capture port connects directly to your computer. It fully supports popular market software like OBS, vMix, VLC, and PotPlayer for effortless online live streaming and recording.
High-Resolution Output: The HDMI input automatically adapts to resolutions above 720P. The PGM video output standard supports up to 4K30fps, 1080p60, and 1080p50.
Professional Transitions & PIP: Enhance your stream with 10 special transition effects, including mix and wipe. You can adjust the transition speed across 4 levels (0.5, 1.0, 1.5, 2.0). It also features a customizable Picture-in-Picture (PIP) function that allows you to adjust the window size and position.
Virtual Studio Ready: Utilize the RGB chroma key function to seamlessly cut out red, green, or blue backgrounds. You can easily superimpose the foreground keying source over the background source.
Integrated PTZ Camera Control: Press the K1 button to instantly use the directional keys to control your PTZ camera's moving direction, adjusting the shooting angle up, down, left, or right.
Advanced Audio Mixing: It supports HDMI embedded audio alongside external audio. You can control the volume of corresponding audio channels using the directional buttons and output the mixed audio via the 3.5mm analog audio port.
Built-in Broadcast Tools: Features quick-access buttons in the live broadcasting function area. This includes "REC" for video recording, "Live" for streaming, and "DSK" for adding customized subtitles to the output screen
Technical Specifications:
-

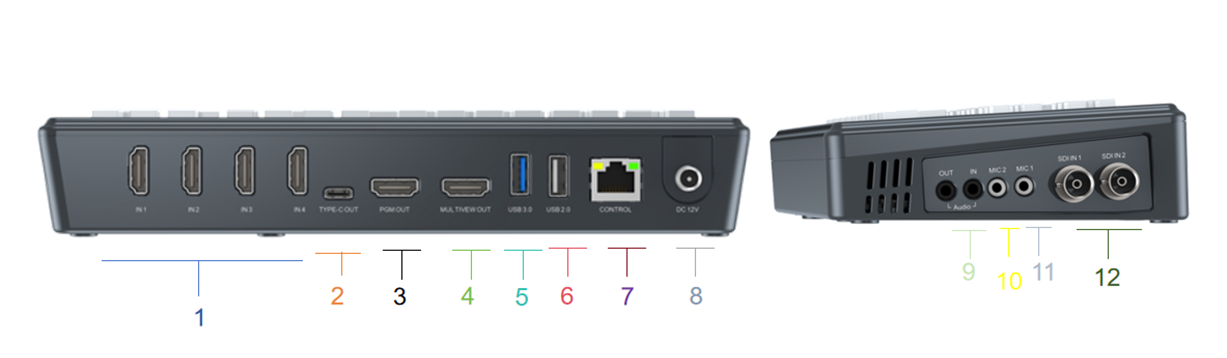

Video Inputs: 4x HDMI, 2x SDI.
-
Video Outputs: 2x HDMI-A ports, 1x USB 2.0 port, 1x USB 3.0 port.
-
Audio Interfaces: 1x 3.5mm audio input, 2x microphone inputs, 1x 3.5mm stereo audio output.
-
Power & Control: DC 12V power supply and 10/100 BaseT network interface for software control and upgrades.
-
Product Dimensions: 230mm x 115mm x 37mm.
-
Product Weight: 0.65kg
